Synthesis of Cucurbitacin Intercalated Hydrotalcite-like Compound Nanohybrids via Delamination-coassembling Method†

doi:10.7503/cjcu20140159

Abstract

Abstract:

A nanohybrid of cucurbitacin(CA), a charge-neutral and poorly water-soluble drug, intercalated hydrotalcite-like compounds(HTlc) was synthesized via a delamination-coassembling method. CA molecules were initially incorporated into the micelles of sodium cholate(Ch), and the resulting negatively charged CA-loaded micelles and the positively charged delaminated HTlc nanosheets were then coassembled together into the CA-Ch-HTlc nanohybrid. The so-obtained nanohybrid was characterized by small angle X-ray scattering, Fourier transform infrared, transmission and scanning electron microscopy, zeta potential and elemental analyses. The results showed that the loading of CA in the nanohybrid was 7.06%, indicating that this route could be used to achieve the effective intercalation of charge-neutral and poorly water-soluble drugs into the HTlc gallery. Based on the sizes of Ch and CA, and the gallery heights of the nanohybrid, a possible orientation of Ch anions and CA molecules in the HTlc gallery was proposed. The Ch anions are arranged as a slightly tilted bilayer with their long axis approximately perpendicular to the brucite-like layer, and the CA molecules are encapsulated in the bilayer as a consequence of the hydrophobic interactions. The in vitro release of CA from the nanohybrid was examined, and the results showed that the nanohybrid had a good drug controlled release performance and its drug release process obeyed pseudo-second order kinetics model.

Key words: Hydrotalcite-like compound, Cucurbitacin, Delamination-coassembling method, Nanohybrid, Release

CLC Number:

O648

TrendMD:

WANG Shuang, WU Xiaowen, LI Haiping, ZHANG Renjie, HOU Wanguo. Synthesis of Cucurbitacin Intercalated Hydrotalcite-like Compound Nanohybrids via Delamination-coassembling Method^†[J]. Chem. J. Chinese Universities, 2014, 35(9): 1982.

Figures/Tables 7

Fig.1 Molecular structures of cucurbitacin B(A) and cucurbitacin E(B)

Fig.2 SAXS patterns of Zn2Al-NO3 HTlc(a), cucurbitacin(b), Ch-HTlc(c) and CA-Ch-HTlc(d)

Fig.3 Schematic illustration of CA-Ch-HTlc nanohybrid structure

Fig.4 FTIR spectra of HTlc(a), sodium cholate(b),Ch-HTlc(c), CA-Ch-HTlc(d) and cucurbitacin(e)

Fig.5 TEM(A, C) and SEM(B, D) images of HTlc(A, B) and CA-Ch-HTlc nanohybrid(C, D) Inset in image (A) is TEM image of delaminated HTlc nanosheets.

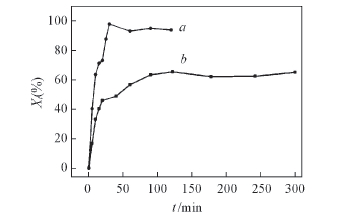

Fig.6 Release profiles of cucurbitacin from the physical mixture of Ch-HTlc and cucurbitacin(a) and CA-Ch-HTlc nanohybrids(b) (37 ℃, pH=7.4)

Fig.7 Pseudo-second order kinetics plots of cucurbitacin release from CA-Ch-HTlc nanohybrids

References 20

[1]	Khan A.I., Lei L., Norquist A. J., O’Hare D.,Chem. Commun., 2001, (22), 2342—2343
[2]	Ambrogi V., Fardella G., Grandolini G., Perioli L., Tiralti M. C., Aaps Pharmscitech,2002, 3(3), 77—82
[3]	Ma X. M., Pang X. J., Quan Z. L., Hou W. G., Chem. J. Chinese Universities,2013, 34(4), 913—918
	(马秀明, 庞秀江, 全贞兰, 侯万国. 高等学校化学学报, 2013, 34(4), 913—918)
[4]	Carja G., Chiriac H., Lupu N., J. Magn. Magn. Mater., 2007, 311(1), 26—30
[5]	Xu J., Zhao M., Hou W. G., Chem. J. Chinese Universities,2012, 33(12), 2750—2756
	(徐洁, 赵满, 侯万国. 高等学校化学学报, 2012, 33(12), 2750—2756)
[6]	Hou W., Jin Z. L., Colloid. Polym. Sci., 2007, 285(13), 1449—1454
[7]	Gordijo C. R., Barbosa C. A., Da Costa Ferreira A. M., Constantino V. R., de Oliveira Silva D., J. Pharm. Sci., 2005, 94(5), 1135—1148
[8]	Ogawa M., Asai S., Chem. Mater., 2000, 12(11), 3253—3255
[9]	Wang B., Zhang H., Evans D. G., Duan X., Mater. Chem. Phys., 2005, 92(1), 190—196
[10]	Li Y., Du N., Hou W. G., Liu S. J., Chem. Res. Chinese Universities,2014, 30(1), 137—143
[11]	Trikeriotis M., Ghanotakis D. F., Int. J. Pharm., 2007, 332(1), 176—184
[12]	Lu X., Meng L., Li H., Du N., Zhang R., Hou W., Mater. Res. Bull., 2013, 48(4), 1512—1517
[13]	Wu X., Li H., Song S., Zhang R., Hou W., Int. J. Pharm., 2013, 454(1), 453—461
[14]	Wakimoto N., Yin D., O’Kelly J., Haritunians T., Karlan B., Said J., Xing H., Koeffler H. P., Cancer Sci., 2008, 99(9), 1793—1797
[15]	Jayaprakasam B., Seeram N. P., Nair M. G., Cancer Lett., 2003, 189(1), 11—16
[16]	Lv L., Sun P., Gu Z., Du H., Pang X., Tao X., Xu R., Xu L., J. Hazard. Mater., 2009, 161(2), 1444—1449
[17]	Pavlovic I., Perez M. R., Barriga C., Ulibarri M. A., Appl. Clay. Sci., 2009, 43(1), 125—129
[18]	Hibino T., Jones W., J. Mater. Chem., 2001, 11(5), 1321—1323
[19]	Wang J., Zhou J., Li Z., Song Y., Liu Q., Jiang Z., Zhang M., Chem. Eur. J., 2010, 16(48), 14404—14411
[20]	Moyo L., Nhlapo N., Focke W. W., J. Mater. Sci., 2008, 43, 6144—6158
