双核苯氧亚胺类催化剂的制备及烯烃聚合

doi:10.7503/cjcu20180256

高等学校化学学报 ›› 2018, Vol. 39 ›› Issue (12): 2811.doi: 10.7503/cjcu20180256

双核苯氧亚胺类催化剂的制备及烯烃聚合

张翠¹, 王立娟², 吕中文¹, 许胜¹(), 米普科¹

1. 华东理工大学化学与分子工程学院, 材料科学与工程学院, 上海 200237
2. 中石油石油化工研究院, 大庆化工研究中心, 大庆 163714

收稿日期:2018-04-03 出版日期:2018-10-26 发布日期:2018-10-26
作者简介:
联系人简介: 许胜, 男, 博士, 副教授, 主要从事烯烃聚合催化剂合成研究. E-mail: xusheng@ecust.edu.cn
基金资助:
国家重点研发计划项目(批准号: 2017YFB0306701)和国家自然科学基金(批准号: U1362111)资助.

Synthesis of Binuclear Complexes Containing Phenoxyimine Ligands and Application for Ethylene Polymerization and Copolymerization^†

ZHANG Cui¹, WANG Lijuan², LÜ Zhongwen¹, XU Sheng^1,^*(), MI Puke¹

1. School of Chemistry and Molecular Engineering, School of Materials Science and Engineering,East China University of Science and Technology, Shanghai 200237, China
2. Daqing Petrochemical Research Center of Petrochemical Research Institute, Petrochina Co. Ltd, Daqing 163714, China

Received:2018-04-03 Online:2018-10-26 Published:2018-10-26
Contact: XU Sheng E-mail:xusheng@ecust.edu.cn
Supported by:
† Supported by the National Key R&D Program of China(No.2017YFBO306701) and the National Natural Science Foundation of China(No.U1362111).

摘要/Abstract

摘要：

合成了5个不同结构的苯氧亚胺配体L1~L5, 用Et₃N, Me₃SiCl或HNa处理后与TiCl₄·2THF或CpZrCl₃·DME进行配位反应得到不同取代基结构的化合物C1~C6, 经过 ¹H NMR, ¹³C NMR, IR和元素分析等表征, 确认了化学结构. 以甲基铝氧烷(MAO)为助催化剂, 化合物C1~C6为催化剂催化乙烯聚合, 考察了聚合温度、乙烯压力、铝钛或铝锆比对催化剂活性及聚合物分子量的影响. 聚合实验结果表明, 刚性桥基结构提高了双核化合物(LMCl₃)₂的稳定性, 催化剂的活性基本都能达到10⁵~10⁶ g/(mol M·h), 其中C5的催化活性最高, 达到1.23×10⁶ g/(mol Zr·h); C4在Al/Ti摩尔比为50:1时也具有较好的催化活性[5.89×10⁵ g/(mol Ti·h)], 聚合物分子量1.11×10⁶. 该类催化剂还可以有效催化乙烯与1-辛烯共聚, 1-辛烯插入率达到10.65%(摩尔分数).

关键词: 双核苯氧亚胺, 乙烯/1-辛烯, 共聚, 烯烃聚合催化剂

Abstract:

Binuclear complexes with phenoxyimine ligand were designed and synthesized, in which the ligands were synthesized by a condensation reaction of p-phenylenediamine and substituted salicylaldehyde. Binuclear complexes C1—C6 were synthesized by the TiCl₄·2THF or CpZrCl₃·DME reacted with the ligands treated with triethylamine, trimethylchlorosilane or sodium hydride. Both the ligands and the compounds were well characterized by ¹H NMR, ¹³C NMR, IR, element analysis and MS. When combined with methylaluminoxane(MAO), the binuclear complexes show higher activity for ethylene polymerization. The effects of polymerization factors such as temperature, pressure of ethylene, ratio of aluminum to titanium or zirconium on the catalytic activity and polymer molecular weight were also investigated. The experimental results show that the activity of the catalysts reached 10⁵—10⁶ g/(mol M·h); and the catalyst C5 has the highest catalytic activity of 1.23×10⁶ g/(mol Zr·h). However, the C4 could keep higher catalytic activity when the molar ratio of Al/Ti was lower to 50:1, and the molecular weight of the polymer was higher to 1.11×10⁶. It is also found that the catalyst could effectively catalyze the copolymerization of ethylene with 1-octene and the insertion rate of 1-octene could reach to 10.65%(molar fraction).

Key words: Binuclear phenoxyimine, Ethylene/1-octene, Copolymerization, Catalyst of ethyene polymerization

中图分类号:

O631
O614.8

TrendMD:

张翠, 王立娟, 吕中文, 许胜, 米普科. 双核苯氧亚胺类催化剂的制备及烯烃聚合. 高等学校化学学报, 2018, 39(12): 2811.

ZHANG Cui,WANG Lijuan,LÜ Zhongwen,XU Sheng,MI Puke. Synthesis of Binuclear Complexes Containing Phenoxyimine Ligands and Application for Ethylene Polymerization and Copolymerization^†. Chem. J. Chinese Universities, 2018, 39(12): 2811.

图/表 12

参考文献 25

[1]	Makio H., Fujita T., Acc. Chem. Res.,2009, 42(10), 1532—1544
[2]	Makio H., Terao H., Iwashita A., Fujita T., Chem. Rev.,2011, 111, 2363—2449
[3]	Sturzel M., Mihan S., Mulhaupt R., Chem. Rev.,2016, 116, 1398—1433
[4]	Owiny D., Parkin S., Ladipo F.T., J. Org. Chem.,2003, 678, 134—141
[5]	Pennington D.A., Clegg W., Coles S. J., Hursthouse M. B., Hughes D. L., Light M. E., Schormann M., Bochmann M., Lancaster S. J.,Dalton Trans., 2005, 561—571
[6]	Nie Y.J., Sun J.Q., Wang L.C., J. Mat. Sci. Eng.,2007, 4(25), 493—496
[7]	Aaron S., Labinger J.A., John E.B., Organometallics,2013, 32(23), 6899—6902
[8]	Aaron S., VanderVelde D.G., Labinger J.A., Bercaw J.E., J. Am. Chem. Soc.,2014, 136(30), 10790—10800
[9]	Soshnikov I.E., Semikolenova N.V., Ma J., Zhao K.Q., Zakharov V.A., Bryliakov K.P., Redshaw C., Talsi E.P., Organometallics,2014, 33(6), 1431—1439
[10]	Salata M.R., Marks T.J., J. Am. Chem. Soc.,2008, 130(1), 12—13
[11]	Salata M.R., Marks T.J., Macromolecules,2009, 42(6), 1920—1933
[12]	Ivanchevab S.S., Oleinik II,Tolstikov G. A., Eur. Polym. J.,2012, 48(1), 191—199
[13]	Xu S., Jia J.J., Huang J.L., J. Polym. Sci., Part A: Polym. Chem.,2007, 45, 4901—4913
[14]	Xu S., Huang J.L., J. Appl. Polym. Sci.,2013, 130(4), 2891—2899
[15]	Xu S., Liang C.C., Lv Z.W., Zhu Y.L., Zhang C., Chinese J. Org. Chem.,2017, 37, 1284—1289
	(许胜, 梁春超, 吕中文, 朱玉玲, 张翠. 有机化学, 2017, 37, 1284—1289)
[16]	Yoshimura T., Tomohara K., Kawabata T., J. Am. Chem.Soc., 2013, 19(135), 7102—7105
[17]	van Otterlo W. A. L., Ngidi E.L., Kuzvidza S., Morgans G.L., Moleele S.S., de Koning C.B., Tetrahedron,2005, 61(42), 9996—10006
[18]	Steen P.O., Grandbois M., McNeill K., Arnold W.A., Environ. Sci. Technol.,2009, 12(43), 4405—4411
[19]	Kiviranta P.H., J. Med.Chem., 2006, 26(49), 7907—7911
[20]	Sven R., Dirk F.J., Sjoerd H., Eur. J. Inorg. Chem.,2008, 22, 3442—3451
[21]	Zhuang D.F., Sun Y., Deng X.J., Chen Q., Dong B.J., Chem. J. Chinese Universities,2012, 33(10), 2121—2128
	(张丹枫, 孙悦, 邓筱娟, 陈谦, 董宝军. 高等学校化学学报, 2012, 33(10), 2121—2128)
[22]	Huang J.L., Lian B., Qian Y.L., Zhou W.Z., Macromolecules,2002, 35, 4871—4874
[23]	Furuyama R., Mitani M., Mohri J.I., Mori R., Tanaka H., Fujita T., Macromolecules,2005, 38(5), 1546—1552
[24]	Delferro M., Marks T.J., Chem. Rev.,2011, 111, 2450—2485
[25]	Randall J.C., J. Macromol. Sci.: Reviews in Macromolecular Chemistry and Physics., 1989, 29(2/3), 201—317

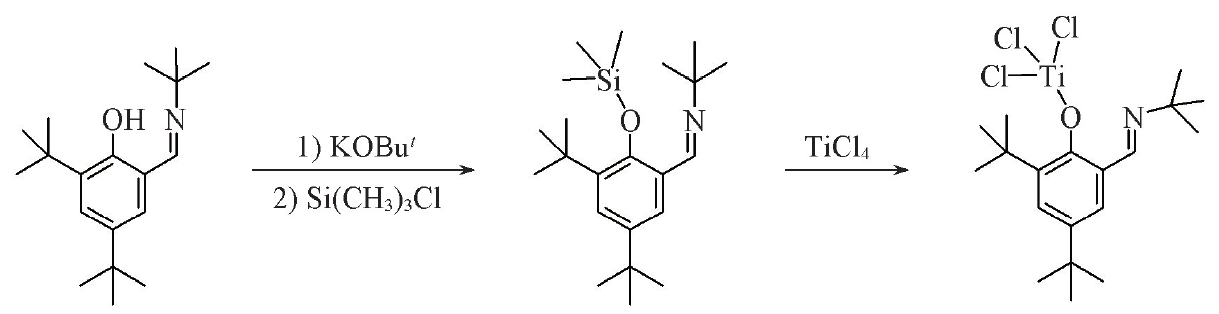

Catalyst	10^-4 Activity(g·mol^-1M·h^-1)	M_η	M_n	M_w	PDI
C1	7.6	47800
C2	8.7	52100
C3	11.7	31600	4995	32802	6.57
C4	56.2	61900	7332	76827	10.48
C5	123.0	49400	5222	45982	8.81
C6	15.6

Catalyst	10^-4 Activity(g·mol^-1M·h^-1)	M_η	M_n	M_w	PDI
C1	7.6	47800
C2	8.7	52100
C3	11.7	31600	4995	32802	6.57
C4	56.2	61900	7332	76827	10.48
C5	123.0	49400	5222	45982	8.81
C6	15.6

Entry	Cat.	T/℃	p/MPa	n(Al)/n(Ti)	10^-5 Activity/(g·mol^-1Ti·h^-1)	10^-4 M_η	M_n	M_w	PDI
1	C4	30	0.5	50/1	2.94	6.55	6715	55495	8.26
2	C4	30	1.0	50/1	4.71	9.91
3	C4	30	1.5	50/1	5.89	111.23
4	C4	30	1.0	300/1	7.83	3.52
5	C4	30	1.0	500/1	10.5	4.02
6	C4	30	1.0	1000/1	11.8	7.28
7	C4	60	1.0	1000/1	5.62	7.93	7787	79240	10.17
8	C4	90	1.0	300/1	3.37	1.41
9	C4	90	1.0	500/1	3.74	4.69
10	C4	90	1.0	1000/1	5.61	6.19	7332	76827	10.48
11	Cp₂TiCl₂	30	1.0	1000/1	4.65	32.09
12	C7	30	1.0	1000/1	8.35	68.84

Entry	Cat.	T/℃	p/MPa	n(Al)/n(Ti)	10^-5 Activity/(g·mol^-1Ti·h^-1)	10^-4 M_η	M_n	M_w	PDI
1	C4	30	0.5	50/1	2.94	6.55	6715	55495	8.26
2	C4	30	1.0	50/1	4.71	9.91
3	C4	30	1.5	50/1	5.89	111.23
4	C4	30	1.0	300/1	7.83	3.52
5	C4	30	1.0	500/1	10.5	4.02
6	C4	30	1.0	1000/1	11.8	7.28
7	C4	60	1.0	1000/1	5.62	7.93	7787	79240	10.17
8	C4	90	1.0	300/1	3.37	1.41
9	C4	90	1.0	500/1	3.74	4.69
10	C4	90	1.0	1000/1	5.61	6.19	7332	76827	10.48
11	Cp₂TiCl₂	30	1.0	1000/1	4.65	32.09
12	C7	30	1.0	1000/1	8.35	68.84

Sample	Sequence	Distribution
Diad	EE	0.7157
	EO	0.2727
	OO	0.0116
Triad	EEE	0.5556
	EEO	0.3202
	EOE	0.0833
	EOO	0.0232
	OEO	0.0177
	OOO	0.0000
1-Octene		0.1065
Ethylene		0.8935

双核苯氧亚胺类催化剂的制备及烯烃聚合

Synthesis of Binuclear Complexes Containing Phenoxyimine Ligands and Application for Ethylene Polymerization and Copolymerization^†

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 25

相关文章 15

编辑推荐

Metrics

本文评价

[1]	王征文, 高凤翔, 曹瀚, 刘顺杰, 王献红, 王佛松. 基于二氧化碳共聚物的紫外光固化高分子材料的制备与性能[J]. 高等学校化学学报, 2022, 43(7): 20220236.
[2]	李海勃, 肖长发, 江龙, 黄云, 淡宜. MCM-41分子筛负载氯化铝催化丙烯酸甲酯与1-辛烯共聚[J]. 高等学校化学学报, 2021, 42(9): 2974.
[3]	刘晓锦, 李婷, 汪洋, 东为富. 具有广谱紫外屏蔽性能的三元共聚物微球的制备[J]. 高等学校化学学报, 2021, 42(6): 1965.
[4]	徐梦祎, 黄雪雯, 李小杰, 魏玮, 刘晓亚. “串珠状”复合纳米组装体修饰丝网印刷电极构建的生物传感器[J]. 高等学校化学学报, 2021, 42(6): 1768.
[5]	樊娟娟, 韩媛媛, 崔杰. ABC三嵌段共聚物胶束从多间隔结构到多核结构转变的Monte Carlo模拟[J]. 高等学校化学学报, 2021, 42(3): 857.
[6]	许晓洲, 刘仪, 何民辉, 莫松, 蓝邦伟, 翟磊, 范琳. 共聚结构和分子量对热塑性聚酰亚胺树脂熔融与耐热性能的影响[J]. 高等学校化学学报, 2021, 42(3): 919.
[7]	杜欣瑶, 王玮, 林宇, 吴国章. 含双酚芴聚碳酸酯的合成与光学性能[J]. 高等学校化学学报, 2021, 42(12): 3765.
[8]	黄辉龙, 黄汉雄. 注压成型纳米结构PP/POE共混物表面的液滴低温冲击行为[J]. 高等学校化学学报, 2021, 42(10): 3195.
[9]	张俊英, 彭伟, 陈子威, 贺爱华. 聚合温度对负载型Ziegler-Natta催化剂催化丁二烯-异戊二烯共聚合的影响[J]. 高等学校化学学报, 2020, 41(8): 1873.
[10]	国钦瑞, 邵华锋, 贺爱华. TBIR应用于航空胎侧胶的热氧老化性能[J]. 高等学校化学学报, 2020, 41(4): 789.
[11]	武营飞,李洪昱,蔡磊,贺爱华. 高耐磨低生热NBR/TBIR复合材料的结构与性能[J]. 高等学校化学学报, 2020, 41(3): 565.
[12]	张萌, 王绍森, 辛宇豪, 刘学, 吴秋华, 张国林. 温度/pH响应性MPEG-b-PCL/PNVCL-b-PCL共聚物复合胶束的制备及载药性质[J]. 高等学校化学学报, 2020, 41(12): 2822.
[13]	石晓宇, 王宋蒙, 柳凌艳, 常卫星, 李靖. 两亲性嵌段共聚物PMnEOS-b-PAA的可控合成及与PS-b-PAA共组装体的形貌[J]. 高等学校化学学报, 2020, 41(11): 2545.
[14]	张丹枫, 赵毛雨, 郭宁, 唐颂超, 郑安呐. “一锅法”N-(2-苯甲酰胺苯基)-水杨醛亚胺/TiCl₄·2THF催化乙烯聚合[J]. 高等学校化学学报, 2019, 40(9): 2012.
[15]	王琳, 张艳慧, 阿孜古丽·木尔赛力木, 兰海蝶. 以PS-b-P2VP为模板剂诱导调控聚苯胺形貌、尺寸及电化学性能[J]. 高等学校化学学报, 2019, 40(8): 1748.

双核苯氧亚胺类催化剂的制备及烯烃聚合

Synthesis of Binuclear Complexes Containing Phenoxyimine Ligands and Application for Ethylene Polymerization and Copolymerization†

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 25

相关文章 15

编辑推荐

Metrics

本文评价

Synthesis of Binuclear Complexes Containing Phenoxyimine Ligands and Application for Ethylene Polymerization and Copolymerization^†
