Ag∶InP/ZnSe纳米晶的合成与生物成像

doi:10.7503/cjcu20170286

摘要/Abstract

摘要：

采用高温热注入法, 以P[N(CH3)2]3为磷源合成了具有近红外荧光的Ag∶InP/ZnSe纳米晶. 采用紫外|可见|近红外吸收光谱(UV|Vis|NIR)、荧光光谱、透射电子显微镜(TEM)、 X 射线衍射(XRD)等对产物的结构和光学性质进行了表征, 并分析了Ag掺杂浓度和温度对InP纳米晶荧光性能的影响. 通过调节Ag掺杂浓度和反应温度, 发现当Ag掺杂量为6%, 反应温度为200 ℃时, Ag∶InP纳米晶的发光效率最高. 将制备的Ag∶InP的表面包覆ZnSe, 粒子的荧光效率从原来的20%提高到45%. 将具有近红外荧光的Ag∶InP/ZnSe纳米晶应用于细胞成像, 结果表明制备的荧光纳米晶在细胞成像中清晰可见且毒性较低.

关键词: Ag∶InP/ZnSe, 纳米晶, 近红外荧光, 生物成像

Abstract:

Ag∶InP nanocrystals with near|infrared(NIR) luminescence properties were synthesized and characterized by means of UV|Vis|NIR absorption spectroscopy, transmission electron microscopy(TEM) and X|ray powder diffraction(XRD). When Ag doping amount was 6% and doping temperature was 200 ℃, the Ag∶InP nanocrystals have the highest luminous efficiency. The emission of as|prepared samples was tunable in the near infrared region by tuning the size of samples. After the surface of Ag∶InP nanocrystals was coated with ZnSe, the stability of the particles was improved, and the fluorescence efficiency of the particles was increased from 20% to 45%. Also, the biomedical imaging results indicated that as|prepared Ag∶InP/ZnS nanocrystals could be a nice carrier with low toxicity.

Key words: Ag∶InP/ZnSe, Nanocrystals, Near, infrared luminescence, Bioimaging

中图分类号:

O614

TrendMD:

亢艳艳, 戚卉, 周淼, 张颖, 庄家琪, 杨军星, 王博蔚. Ag∶InP/ZnSe纳米晶的合成与生物成像. 高等学校化学学报, 2017, 38(9): 1512.

KANG Yanyan, QI Hui, ZHOU Miao, ZHANG Ying, ZHUANG Jiaqi, YANG Junxing, WANG Bowei. Synthesis of Ag∶InP/ZnSe Nanocrystals and Their Application in Bioimaging. Chem. J. Chinese Universities, 2017, 38(9): 1512.

图/表 7

Fig.1 UV|Vis absorption spectra of InP nanocrystals synthesized at different temperatures(A), XRD pattern(B) and TEM image(C) of InP nanocrystals synthesized at 180 and 200 ℃, respectively

Fig.2 Absorption(a) and PL(b) spectra(A), XRD pattern(B) and TEM image(C) of Ag∶InP nanocrystals with the size of 30 nm

Fig.3 UV|Vis(A, C) and PL(B, D) spectra of Ag∶InP nanocrystals at different Ag doping levels(2%—10%)(A, B) and different reaction temperatures(C, D)

Fig.4 UV|Vis(a, c, e, g, i) and PL(b, d, f, h, j) spectra of Ag∶InP nanocrystals with different sizes(A) and emission peak position of Ag∶InP nanocrystals as a function of the particle size(B)

Fig.5 UV|Vis(a, c) and PL(b, d) spectra of Ag∶InP nanocrystals(a, b) and Ag∶InP/ZnSe nanocrystals(c, d)

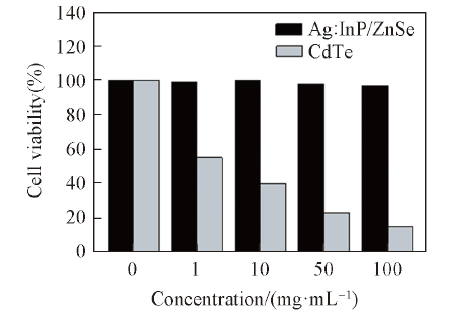

Fig.6 Cell viabilities of Vero cells incubated with Ag∶InP and CdTe nanocrystals, respectively

Fig.7Bright field(A) and fluorescence(B) images of the vero cells incubated with Ag∶InP/ZnSe nanocrystals

参考文献 21

[1]	Jo J.H., Kim J. H., Lee K. H., Han C. Y., Jang E. P., Do Y. R., Yang H., Opt. Lett., 2016,41,3984—3987
[2]	Zhang Z.L., Liu D., Li D. Z., Huang K. K., Zhang Y., Shi Z., Xie R. G., Han M. Y., Wang Y., Yang W. S., Chem. Mater., 2015,27,1405—1411
[3]	Kim S., Kim T., Kang M., Kwak S.K., Yoo T. W., Lee S. P., Yang I., Hwang S., Lee J. E., Kim S. K., Kim S. W., J. Am. Chem. Soc., 2012,134,3804—3809
[4]	Ziegler J., Xu S., Kucur E., Meister F., Batentschuk M., Gindele F., Nann T.,Adv. Mater., 2008,20,4068—4073
[5]	Fu M., Luan W. L., Tu S. D., Mleczko L., Chem. J. Chinese Universities, 2015,36[STBZ](10), 1865—1872
	(付敏, 栾伟玲, 涂善东, Mleczko Leslaw. 高等学校化学学报, 2015,36[STBZ](10), 1865—1872)
[6]	Wang J. M., Zhu C. N., Zhu D. L., Tian Z. Q., Lin Y., Pang D. W., Chem. J. Chinese Universities, 2015,36[STBZ](7), 1264—1268
	(王佳梅, 朱春楠, 朱东亮, 田智全, 林毅, 庞代文. 高等学校化学学报, 2015,36[STBZ](7), 1264—1268)
[7]	Yong K.T., Ding H., Roy I., Law W. C., Bergey E. J., Maitra A., Prasad P. N.,ACS Nano, 2009,3(3), 502—510
[8]	Li L., Reiss P.,J. Am. Chem. Soc., 2008,130,11588—11589
[9]	Xie R.G., Battaglia D., Peng X. G., J. Am. Chem. Soc., 2007,129,15432—15433
[10]	Xie R.G., Peng X. G., J. Am. Chem. Soc., 2009, 131, 10645—10651
[11]	Gary D.C., Terban M. W., Billinge S. J. L., Cossairt B. M., Chem. Mater., 2015, 27, 1432—1441
[12]	Xu S., Ziegler J., Nann T.,J. Mater. Chem., 2008, 18, 2653—2656
[13]	Zhou M., Kang Y.Y., Huang K. K., Shi Z., Xie R. G., Yang W. S., RSC Adv., 2016, 6, 74895—74902
[14]	Tessier M.D., Kim D. N., Dupont D., Roo J. D., Hens Z., Chem. Mater., 2015, 27, 4893—4898
[15]	Kim K., Yoo D., Choi H., Tamang S., Ko J.H., Kim S., Kim Y. H., Jeong S., Angew. Chem. Int. Ed., 2016, 55, 3714—3718
[16]	Buffard A., Dreyfuss S., Nadal B., Heuclin H., Xu X., Patriarche G., Mézailles N., Dubertret B., Chem. Mater., 2016, 28, 5925—5934
[17]	Zhang Z.L., Li D. Z., Xie R. G., Yang W. S., Angew. Chem. Int. Ed., 2013, 52, 5052—5055
[18]	Liu Y., Li D.Z., Zhang Y., Liu Z. H., Xie R. G., Chem. Res. Chinese Universities, 2015, 31(1), 1—3
[19]	Peng L.C., Li D. Z., Zhang Z. L., Huang K. K., Zhang Y., Shi Z., Xie R. G., Yang W. S., Nano Research, 2015, 8(10), 3316—3331
[20]	Pradhan N., David G., Thessing J., Peng X.G., J. Am. Chem. Soc., 2005, 127, 17586—17587
[21]	Ma N., Sargent E.H., Kelley S. O., Nat. Nanotechnol., 2009, 4, 121—125
