金纳米粒子组装体的连续离散型纳米结构控制

doi:10.7503/cjcu20141092

高等学校化学学报 ›› 2015, Vol. 36 ›› Issue (5): 844.doi: 10.7503/cjcu20141092

• 研究论文: 无机化学 • 上一篇下一篇

金纳米粒子组装体的连续离散型纳米结构控制

金萍¹, 代昭¹(), 郭文娟¹, 陈广平²

1. 天津工业大学环境与化学工程学院, 天津 300387
2. Department of Physiological Science,College of Veterinary Medicine, Oklahoma State University, Stillwater OK 74078, USA

收稿日期:2014-12-12 出版日期:2015-05-10 发布日期:2015-04-17
作者简介:联系人简介: 代昭, 男, 博士, 教授, 主要从事荧光生物传感方面的研究. E-mail: daizhao@gmail.com
基金资助:
国家自然科学基金(批准号: 21172171)和天津市自然科学基金(批准号: 12JCQNJC08600, 15JCYBJC20500)资助

Preparation of Gold Nanoparticles Assemblies with Controllable,Continuous and Discrete Nanostructures^†

JIN Ping¹, DAI Zhao^1,^*(), GUO Wenjuan¹, CHEN Guangping²

1. School of Environmental and Chemical Engineering, Tianjin Polytechnic University, Tianjin 300387, China
2. Department of Physiological Sciences, College of Veterinary Medicine, Oklahoma State University, Stillwater OK 74078, USA

Received:2014-12-12 Online:2015-05-10 Published:2015-04-17
Contact: DAI Zhao E-mail:daizhao@gmail.com
Supported by:
† Supported by the National Natural Science Foundation of China(No.21172171) and the Natural Science Foundation of Tianjin, China(Nos.12JCQNJC08600, 15JCYBJC20500)

摘要/Abstract

摘要：

采用柠檬酸钠还原氯金酸的方法, 制备出粒径均一的金纳米粒子(AuNPs), 通过加入二水合双(对-磺酰苯基)苯基膦化二钾盐(BSPP), 增强了AuNPs体系的分散性与稳定性. 选用直径为15和40 nm的AuNPs, 用不同序列巯基修饰的单链DNA连接到其表面, 通过DNA链的杂交, 形成不同结构的金纳米粒子组装体. 通过改变加入DNA延长连接单元的比例, 可以控制金纳米粒子组装体具有连续离散型的1∶1, 2∶1和3∶1纳米结构.

关键词: 金纳米粒子, DNA连接体, 组装体, 纳米结构

Abstract:

Gold nanoparticles(AuNPs) with different sizes(15 and 40 nm) were prepared by reducing chlorauric acid with sodium citrate. The stability of AuNPs was increased when bis(p-sulfonatophenyl)phenylphosphine(BSPP) was used as ligand because of its large molecule size and electro-negativity in water. The assemblies of AuNPs were obtained when AuNPs with different particle sizes were conjugated with two thiol-terminated, single-stranded, and complementary DNA(HS-DNA), respectively, and hybridized each other. The results indicated that AuNPs assemblies could have controllable, continuous and discrete nanostructures with molar ratios of 1∶1, 2∶1 and 3∶1 in the presence of BSPP and with extended strands of DNA as linkers.

Key words: Au nanoparticle, DNA linker, Assembly, Nanostructure

中图分类号:

O614

TrendMD:

金萍, 代昭, 郭文娟, 陈广平. 金纳米粒子组装体的连续离散型纳米结构控制. 高等学校化学学报, 2015, 36(5): 844.

JIN Ping, DAI Zhao, GUO Wenjuan, CHEN Guangping. Preparation of Gold Nanoparticles Assemblies with Controllable,Continuous and Discrete Nanostructures^†. Chem. J. Chinese Universities, 2015, 36(5): 844.

图/表 7

Scheme 1 Preparation of AuNPs using citric acid trisodium or BSPP as ligand

Scheme 2 Preparation of AuNPs assemblies with BSPP and extended DNA linkers

Fig.1 Absorption spectra of Au15 nanoparticles(a0—a2) and Au15 nanoparticles with 50 mmol/L BSPP(b0—b2) dispersed in water with different NaCl concentrationsc(NaCl)/(mmol·L-1): a0, b0. 0; a1, b1. 50; a2, b2. 100.

Fig.2 TEM images of AuNPs with 50 mmol/L NaCl(A) and 50 mmol/L NaCl+50 mmol/L BSPP(B)

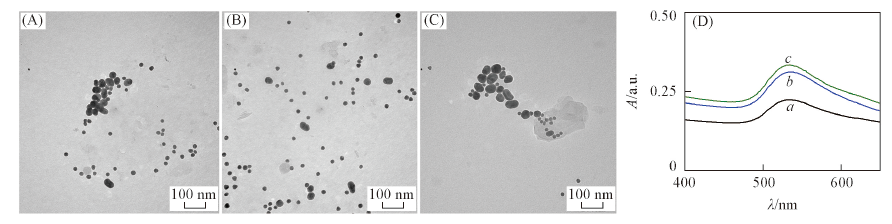

Fig.3 TEM images(A—C) and absorption spectra(D) of AuNPs assemblies with no BSPP and o extended-DNA linkern(Au15)∶n(Au40) of the mixture: (A), a. 1∶1; (B), b. 2∶1; (C), c. 3∶1.

Fig.4 TEM images(A—C) and absorption spectra(D) of AuNPs assemblies with BSPP but o extended-DNA linkern(Au15)∶n(Au40) of the mixture: (A), a. 1∶1; (B), b. 2∶1; (C), c. 3∶1.

Fig.5 TEM images(A—C) and absorption spectra(D) of AuNPs assemblies with BSPP and xtended-DNA linkern(Au15)∶n(Au40) of the mixture: (A), a. 1∶1; (B), b. 2∶1; (C), c. 3∶1.

参考文献 24

[1]	Daniel M., C. , Astruc, D. , Chem. Rev., 2004, 104( 1), 293- 346
[2]	Qian, X. , Zhou, X. , Nie, S. , J. Am. Chem. Soc., 2008, 130( 45), 14934- 14935
[3]	Zhou, K. , Li, Y. , Angew. Chem. Int. Ed., 2012, 51( 3), 602- 613
[4]	Moreira, H. , Grisolia, J. , Sangeetha N., M. , Decorde, N. , Farcau, C. , Viallet, B. , Chen, K. , Viau, G. , Ressier, L. , Nanotechnology, 2013, 24( 9), 095701
[5]	Zheng, Y. , Yuan, Y. , Chai, Y. , Yuan, R. , Biosens. Bioelectron., 2015, 66, 585- 589
[6]	Annadhasan, M. , Muthukumarasamyvel, T. , Sankar V., R. , Rajendiran, N. , ACS Sustainable Chem. Eng., 2014, 2( 4), 887- 896
[7]	Zhang, Z. , Zhang, J. , Qu, C. , Pan, D. , Chen, Z. , Chen, L. , Analyst, 2012, 137( 11), 2682- 2686
[8]	Wang, L. , Wang L., P. , Xu T., S. , Guo C., R. , Liu C., Z. , Zhang, H. , Li, J. , Liang Z., Q. , Chem. Res. Chinese Universities, 2014, 30( 6), 959- 964
[9]	Rao X., Y. , Zhang J., J. , Cui, J. , Hu, Y. , Liu, T. , Chai J., F. , Cheng G., F. , He P., G. , Fang Y., Z. , Chem. Res. Chinese Universities, 2013, 29( 5), 868- 873
[10]	Busson P., M. , Rolly, B. , Stout, B. , Bonod, N. , Larqeut, E. , Polman, A. , Bidault, S. , Nano Lett., 2011, 11( 11), 5060- 5065
[11]	Wang, H. , Reinhard B., M. , J. Phys. Chem. C, 2009, 113( 26), 11215- 11222
[12]	Ohshiro, T. , Zako, T. , Watanabe-Tamaki, R. , Tanaka, T. , Maeda, M. , Chem. Commun., 2010, 46( 33), 6132- 6134
[13]	Zhang, C. , Ma, J. , Yang, J. , Dong, Y. , Xu, J. , J. Colloid Interface Sci., 2014, 418( 1), 31- 36
[14]	Xu, X. , Rosi N., L. , Wang, Y. , Huo, F. , Mirkin C., A. , J. Am. Chem. Soc., 2006, 128( 29), 9286- 9287
[15]	Mastroianni A., J. , Claridge S., A. , Alivisatos A., P. , J. Am. Chem. Soc., 2009, 131( 24), 8455- 8459
[16]	Zhang, J. , Wang, L. , Pan, D. , Song, S. , Boey F., Y. , Zhang, H. , Fan, C. , Small, 2008, 4( 8), 1196- 1200
[17]	Claridge S., A. , Liang H., W. , Basu S., R. , Fré, chet J. M. , Nano Lett., 2008, 8( 4), 1202- 1206
[18]	Wang Z., W. , Lé, vy R. , Fernig D., G. , Brust, M. , Bioconjugate Chem., 2005, 16( 3), 497- 500
[19]	Dai, Z. , Li, Y. , Guo W., J. , Qi D., L. , Zhang J., M. , Micro and Nano Lett., 2012, 7( 2), 142- 145
[20]	Han, X. , Goebl, J. , Lu, Z. , Yin, Y. , Langmuir, 2011, 27( 9), 5282- 5289
[21]	Zhang, X. , Servos M., R. , Liu, J. , Langmuir, 2012, 28( 8), 3896- 3902
[22]	Zhang, T. , Yang, Z. , Liu, D. , Nanoscale, 2011, 3( 10), 4015- 4021
[23]	Haiss, W. , Thanh N. T., K. , Aveyard, J. , Fernig D., G. , Anal. Chem., 2007, 79( 11), 4215- 4221
[24]	Zanchet, D. , Micheel C., M. , Parak W., J. , Gerion, D. , Williams S., C. , J. Phys. Chem. B, 2002, 106( 45), 11758- 11763
