Synthesis and Flame Retardancy of Novel Thermally Stable Poly(imideurethane)s Containing Imide and Alkynyl Groups in Main Chain

doi:10.7503/cjcu20130586

Abstract

Abstract:

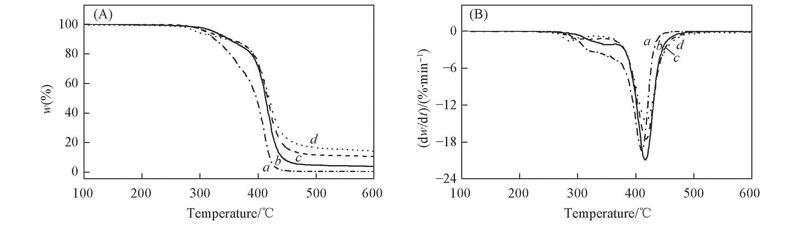

A kind of glycol containing imide and alkynyl function was synthesized from pyromellitic dianhydride(PMAD), butynediol(2-butyne-1,4-diol) and D,L-phenylalanine(DLP). Linear imide and alkynyl modified thermoplastic poly(imide-urethane)s were prepared by the obtained glycol, 4,4'-diphenylmethane diisocyanate(MDI) and poly(tetrahydrofuran)(PTMG) via prepolymerization. The poly(imide-urethane)s structures were characterized with Fourier transform infrared spectroscopy(FTIR), universal testing machine tension, thermalgravimetric analysis(TGA), wide-angle X-ray diffraction(XRD). The results showed that the novel thermoplastic poly(imide-urethane)s elastomer with amorphous structure were successfully synthesized. The tensile strength increases with the hard segment contents. Comparing with the conventional thermoplastic polyurethanes extended by 1,4-butanediol, the poly(imide-urethane)s show slower thermal degradation rate during the degradation process. The polymers with different hard segments contents all reach a UL-94 V-2 rating, and the limiting oxygen index(LOI) value increases with different hard segments contents.

Key words: Thermoplastic polyurethane, Imide, Alkynyl, Thermal stability, Flame retardancy

CLC Number:

O631.1

TrendMD:

TANG Qiheng, AI Qingsong, YANG Rongjie, HE Jiyu. Synthesis and Flame Retardancy of Novel Thermally Stable Poly(imideurethane)s Containing Imide and Alkynyl Groups in Main Chain[J]. Chem. J. Chinese Universities, 2014, 35(1): 199.

Figures/Tables 5

References 28

[1]	Liu X. H., Zhao Y., Liu Z., Wang D. J., Wu J. G., Xu D. F., Chem. J. Chinese Universities, 2008, 29(10), 2096—2100
	(刘新海, 赵莹, 刘智, 王笃金, 吴瑾光, 徐端夫.高等学校化学学报, 2008,29(10), 2096—2100)
[2]	Zhang A.S., Wang D., Yang X. L., Wu J. J., Zhu C. Z., Yang S. G., Acta Polymerica Sinica, 2013, (7), 943—948
	(张安苏, 汪东, 杨晓丽, 吴俊杰, 朱才镇, 杨曙光. 高分子学报, 2013, (7), 943—948)
[3]	Wiggins M. J., MacEwan M., Anderson J. M., Hiltner A., J. Biomed. Mater. Res. Part A, 2004, 68A(4), 668—683
[4]	You C. J., Xu J. G., Zeng Y. Z., Li Y., Jia D. M., Nishi T., Chinese Journal of Polymer Science, 2010, 28(6), 913—922
[5]	Gao C. H., Chen M. Y., Ni J. N., Hua J. J., Xu X. M., Lin W. W., Zheng Q., Chinese Journal of Polymer Science, 2010, 28(2), 219—229
[6]	Luo J. B., Ma C., Liao R., Wan J., Zhang P., Zhang J., Chem. J. Chinese Universities, 2010, 31(6), 1268—1273
	(罗建斌, 马晨, 廖戎, 万静, 张鹏, 张杰.高等学校化学学报, 2010,31(6), 1268—1273)
[7]	Hu X. Y., Zhang Y. X., Zhang T., Yu Q., Chen H., Chem. J. Chinese Universities, 2009, 30(3), 613—617
	(胡小洋, 张燕霞, 张弢, 于谦, 陈红.高等学校化学学报, 2009,30(3), 613—617)
[8]	Wang L.L., Dong X., Liu X. G., Xing Q., Huang M. M., Hu H. Q., Wang D. J., Acta Polymerica Sinica, 2013, (3), 367—376
	(王莉莉, 董侠, 刘祥贵, 邢倩, 黄淼铭, 胡海青, 王笃金. 高分子学报, 2013, (3), 367—376)
[9]	Liu C. C., Zhang A. Y., Ye L., Feng Z. G., Chinese Journal of Polymer Science, 2013, 31(2), 251—262
[10]	Chen J. H., Liu W. Q., Xuan Y. N., Zhang B., Guangzhou Chemistry, 2003, 28(4), 6—11
	(陈精华, 刘伟区, 宣宜宁, 张斌.广州化学, 2003,28(4), 6—11)
[11]	Chen J. H., Liu W. Q., Xuan Y. N., Zhang B., Polyurethane Industry, 2004, 19(1), 12—14
	(陈精华, 刘伟区, 宣宜宁, 张斌.聚氨酯工业, 2004,19(1), 12—14)
[12]	Takeichi T., Suefuji K., Inoue K., J. Polym. Sci. Part A: Polym. Chem., 2002, 40(20), 3497—3503
[13]	Cervantes-Uc J. M., Espinosa J. I. M., Cauich-Rodriguez J. V., Avila-Ortega A., Vazquez-Torres H., Marcos-Fernandez A., Polym. Degrad. Stab., 2009, 94(10), 1666—1677
[14]	Petrovi Z. S., Zavargo Z., Flyn J. H., Macknight W. J., J. Appl. Polym. Sci., 1994, 51(6), 1087—1095
[15]	Sendijarevic A., Sendijarevic V., Frisch K.C., Vlajic M., J. Elastom. Plast., 1991, 23(3), 192—217
[16]	Roth W., Hanella K., Stainbach V., Frosch P., Internationales Wissenschaftliches Kolloquium-Technische HochschuleIlmenau, 1983, 28(2), 167—170
[17]	Sankaran S., Chanda M., J. Appl. Polym. Sci., 1990, 39(7), 1459—1466
[18]	Qin X., Yang X., Wang X., Wang M., J. Polym. Sci. Part A: Polym. Chem., 2005, 43(19), 4469—4477
[19]	Takeichi T., Ujiie K., Inoue K., Polymer, 2005, 46(25), 11225—11231
[20]	Li X.M., Luo Z. H., Kuang S. L., Zhao T., Aerospace Materials and Technology, 2009, (2), 46—49
	(李学梅, 罗振华, 匡松连, 赵彤. 航空材料与科技, 2009, (2), 46—49)
[21]	Bian X.S., Polymeric Materials Science and Engineering, 1987, (4), 1—6
	(卞新声. 高分子材料科学与工程, 1987, (4), 1—6)
[22]	Wei J. F., Li H. T., Meng X. S., Fan W. F., Liu Z. Z., Wang Z., Thermosetting Resin, 2011, 26(3), 1—5
	(魏建峰, 李宏涛, 孟祥胜, 范卫锋, 刘志真, 王震.热固性树脂, 2011,26(3), 1—5)
[23]	Zeng H. M., Mai K. C., Ye L. X., Chem. J. Chinese Universities, 1985, 6(5), 461—466
	(曾汉民, 麦堪成, 叶兰欣.高等学校化学学报, 1985,6(5), 461—466)
[24]	Wang M.C.,Wei L. H., Zhao T., Yu R. L., Feng Z. H., Acta Polymerica Sinica, 2006, (2), 241—247
	(王明存, 魏柳荷, 赵彤, 余瑞莲, 冯志海. 高分子学报, 2006, (2), 241—247)
[25]	Tang Q.H., Ai Q. S., He J. Y., Li X. D., Yang R. J., High Perform. Polym., 2013, DOI: 10.1177/0954008313486280
[26]	Xu Y. J., Petrovic Z., Das S., Wilkes G. L., Polymer, 2008, 49(19), 4248—4258
[27]	Ojha U., Kulkarni P., Faust R., Polymer, 2009, 50(15), 3448—3457
[28]	Hood M. A., Wang B. B., Sands J. M., Scala J. J. L., Beyer F. L., Li C. Y., Polymer, 2010, 51(10), 2191—2198

Sample	m(MDI)∶m(PTMG)∶m(CE)^*	T_5%/℃	LOI(%)	Dripping	UL-94(3.2 mm)
TPU20	17.35∶80.00∶2.65	308.5	19.5	Yes, burns until clamping	No class
TPIU20	12.71∶80.00∶7.29	323.5	22.5	Yes, immediate extinguishing after removing the fiame	V-2
TPIU30	14.52∶70.00∶15.48	312.0	27.0	Yes, immediate extinguishing after removing the fiame	V-2
TPIU40	16.32∶60.00∶23.68	293.0	29.5	Yes, immediate extinguishing after removing the fiame	V-2

Sample	m(MDI)∶m(PTMG)∶m(CE)^*	T_5%/℃	LOI(%)	Dripping	UL-94(3.2 mm)
TPU20	17.35∶80.00∶2.65	308.5	19.5	Yes, burns until clamping	No class
TPIU20	12.71∶80.00∶7.29	323.5	22.5	Yes, immediate extinguishing after removing the fiame	V-2
TPIU30	14.52∶70.00∶15.48	312.0	27.0	Yes, immediate extinguishing after removing the fiame	V-2
TPIU40	16.32∶60.00∶23.68	293.0	29.5	Yes, immediate extinguishing after removing the fiame	V-2
