高等学校化学学报

• 研究论文 • 上一篇    下一篇

高效可见光响应ZnFe2O4/MXene的制备及其光催化性能

田振华1, 2,巩固1,韩秀斐1,郝钏宇1,高盼盼1,孙晓丹1

  1. 1. 陕西科技大学轻工科学与工程学院 2. 轻化工程国家级实验教学示范中心
  • 收稿日期:2026-02-01 修回日期:2026-03-28 出版日期:2026-04-03 发布日期:2026-04-03
  • 通讯作者: 田振华 E-mail:tian_amb@163.com
  • 基金资助:
    国家自然科学基金(批准号:22278256)和陕西省创新能力支撑计划项目(批准号:2025ZC-KJXX-41)资助

Preparation and Photocatalytic Performance of Highly Efficient Visible-light Responsive ZnFe2O4/MXene

TIAN Zhenhua1, 2*, GONG Gu1, HAN Xiufei1, HAO Chuanyu1, GAO Panpan1, SUN Xiaodan1

  1. 1. College of Bioresources Chemical and Materials Engineering 2. College of Chemistry and Chemical Engineering, Shaanxi University of Science & Technology
  • Received:2026-02-01 Revised:2026-03-28 Online:2026-04-03 Published:2026-04-03
  • Contact: Zhen-Hua TIAN E-mail:tian_amb@163.com
  • Supported by:
    Supported by the National Natural Science Foundation of China(No.22278256) and the Innovation Capacity Support Program Project of Shaanxi Province, China(No. 2025ZC-KJXX-41)

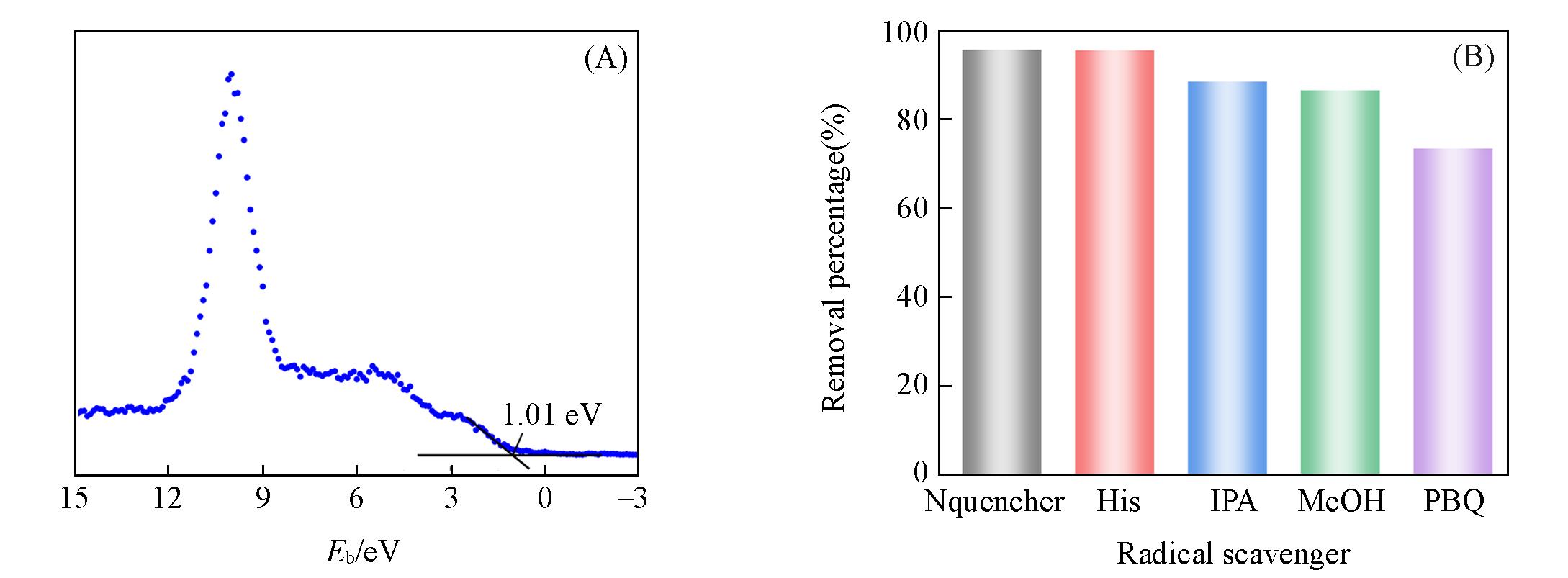

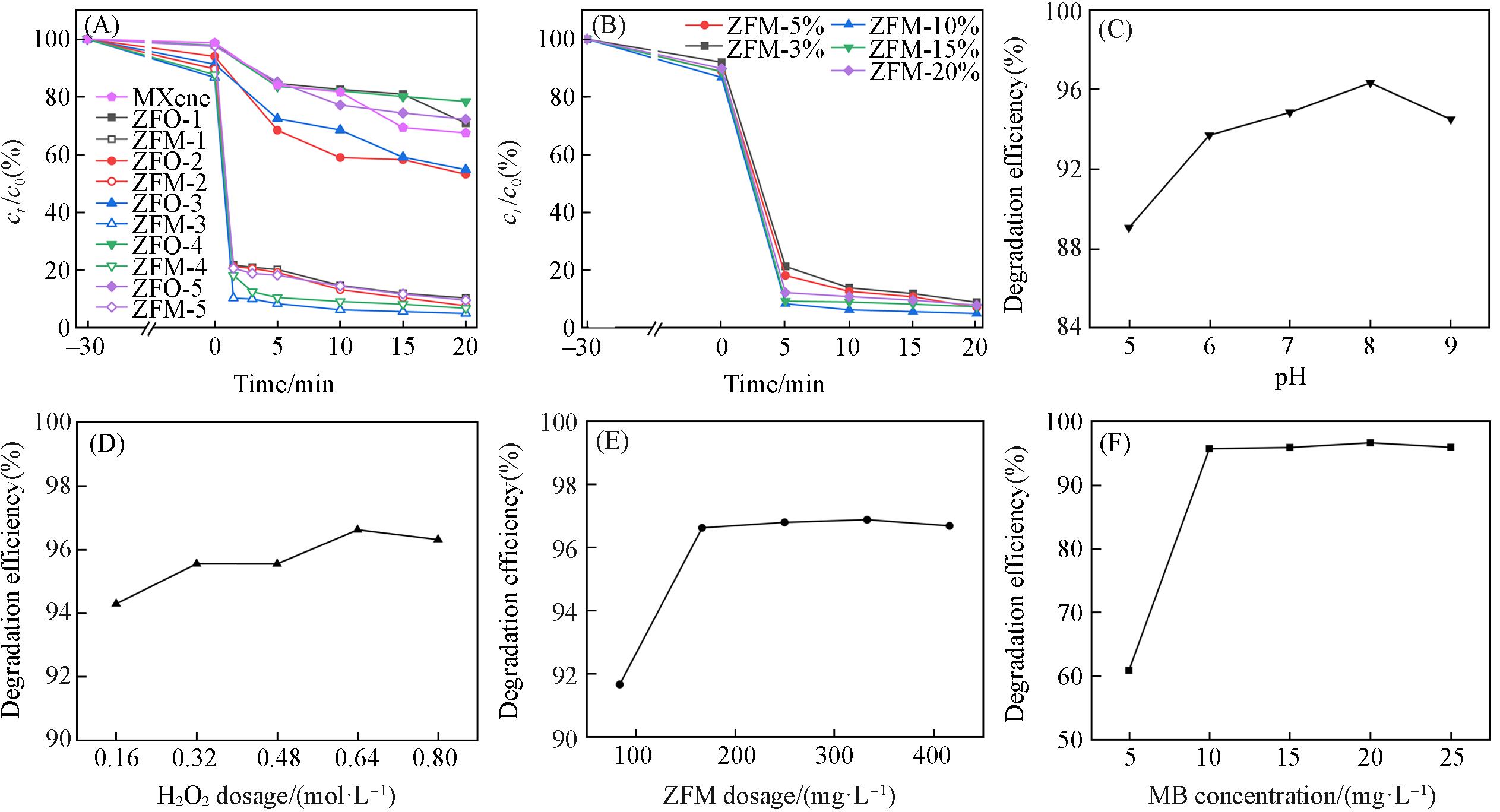

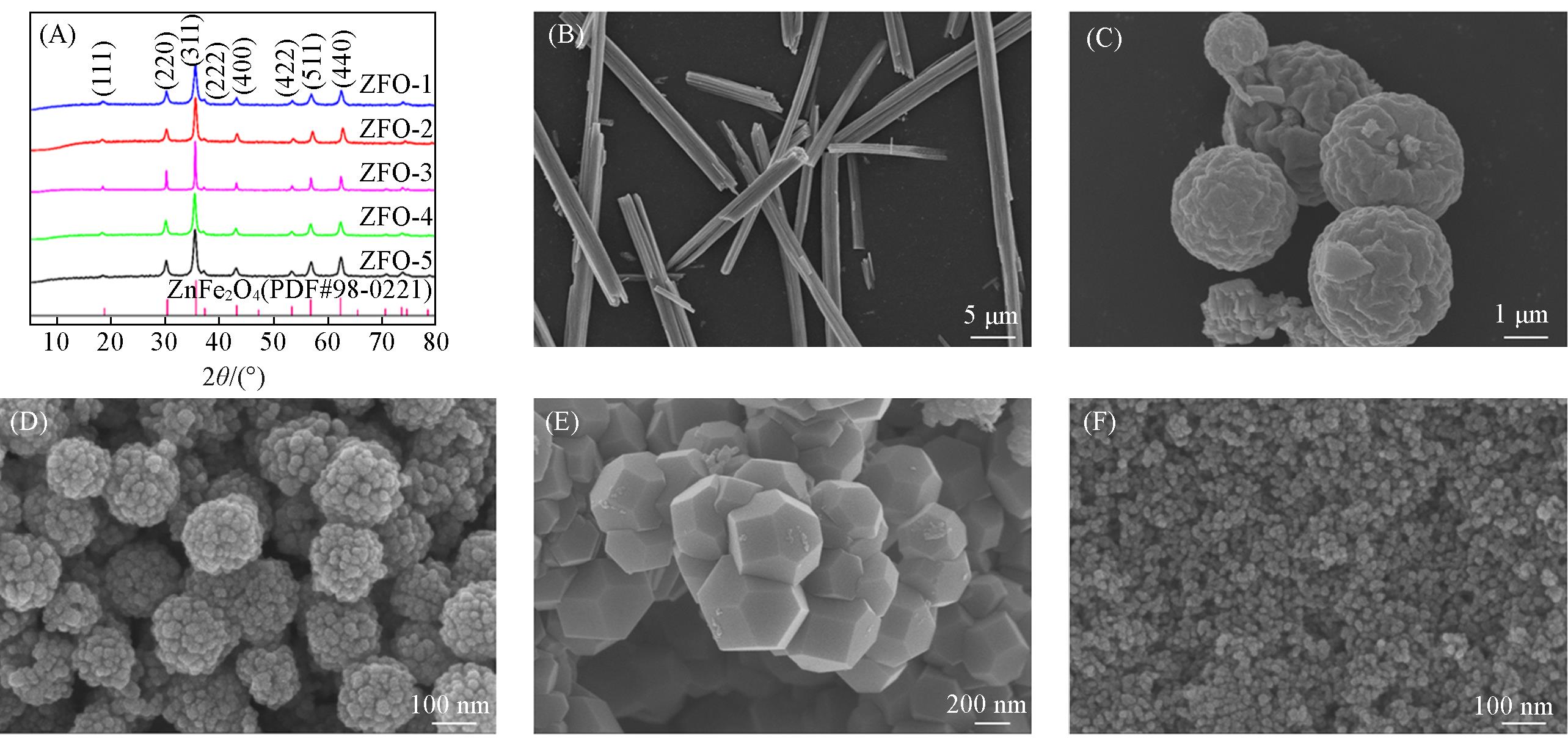

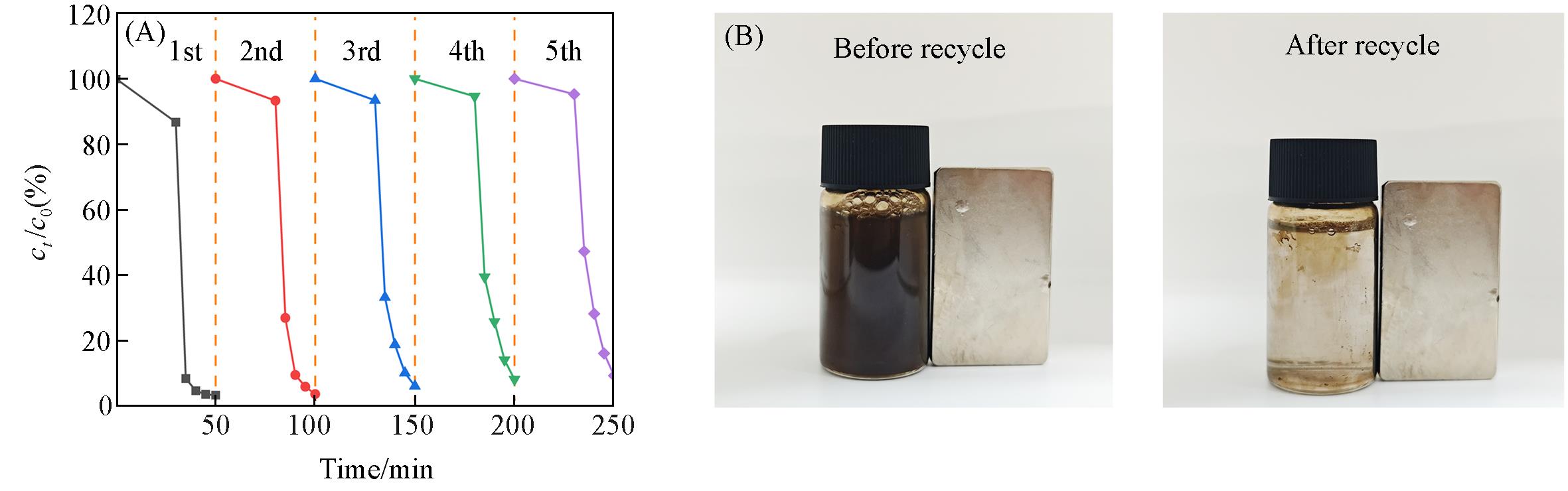

摘要: ZnFe2O4作为光催化剂易被可见光激发、环境毒性低且磁性易回收,在有机废水处理中具有良好的应用前景.然而,ZnFe2O4的光生电子-空穴对易复合限制了其光催化活性.结合水热法和室温静电吸附法制备了ZnFe2O4/MXene光催化剂,并通过自身形貌调控(微米棒、中空微球、阿基米德多面体、“爆米花”球、纳米颗粒)和MXene的协同作用解决了ZnFe2O4可见光下光催化效率不佳的问题.借助MXene的高导电性,光催化剂的电荷转移效率得到改善,光生载流子易分离.当ZnFe2O4呈阿基米德多面体、MXene用量为ZnFe2O4的10%时,ZnFe2O4/MXene对亚甲基蓝(MB)的降解率20 min内可达到96.9%,分别是ZnFe2O4和MXene的2.1和3.0倍;循环5次后,MB降解率仍保持在90.0%以上.通过X射线光电子能谱价带谱和活性物种捕获实验提出了ZnFe2O4/MXene对MB的降解机理,起主要作用的活性物种为?O2?,?OH和h+起次要作用.

关键词: 可见光光催化剂, ZnFe2O4, MXene, 亚甲基蓝, 磁性

Abstract: ZnFe2O4, a visible-light-responsive photocatalyst, exhibits significant potential for organic wastewater treatment due to its low environmental toxicity and magnetic recyclability. However, the rapid recombination of photogenerated electron-hole pairs in pure ZnFe2O4 severely limits its photocatalytic activity. To address this issue, ZnFe2O4/MXene photocatalysts were developed via a combined hydrothermal and room-temperature electrostatic adsorption approach. Additionally, the photocatalytic efficiency of ZnFe2O4 under visible light was enhanced through the morphology control of ZnFe2O4 (microrod, hollow microsphere, Archimedean polyhedron, “popcorn” sphere, nanoparticle) and the synergistic effect of MXene. The high conductivity of MXene improved charge transfer efficiency and facilitated the separation of photogenerated carriers. When ZnFe2O4 was synthesized as an Archimedean polyhedron and MXene dosage was 10% of ZnFe2O4, the optimized ZnFe2O4/MXene photocatalyst achieved a methylene blue (MB) degradation efficiency of 96.9% within 20 minutes, which was 2.1 and 3.0 times higher than that of ZnFe2O4 and MXene, respectively. Moreover, the degradation efficiency of MB remained over 90.0% after five cycles. The degradation mechanism of MB by ZnFe2O4/MXene was investigated using valence band spectrum of X-ray photoelectron spectroscopy and active species capture experiments. The results indicated that ?O2? served as the primary active species, while ?OH and h? played secondary roles in MB degradation.

Key words: Visible-light photocatalyst, ZnFe2O4, MXene, Methylene blue, Magnetic
