微波等离子体炬原子发射光谱法测定铁增敏效应

doi:10.7503/cjcu20160771

摘要/Abstract

摘要：

针对在低功率下工作的微波等离子体炬原子发射光谱法(MPT-AES)存在对一些元素检测灵敏度较低和抗基体干扰能力弱的问题, 以氩气为载气和工作气, 研究了表面活性剂及镧盐对MPT-AES测定铁的增敏效应, 考察了铁测定的工作条件和共存元素对铁测定的影响. 实验结果表明, 非离子表面活性剂对铁的测定有抑制作用, 而阳离子表面活性剂和镧盐对铁的测定有增敏作用, 其中镧盐增敏效果最好. 以镧盐为增敏剂, 不仅可提高MPT-AES测定铁的灵敏度, 还可增加共存元素的允许量. 当体系中镧浓度为0.500 mg/mL时, 至少可使40倍的锌, 30倍的钴, 20倍的镍、锰, 15倍的钙, 10倍的镁、铜和钠不影响铁的测定. 与不加镧时相比, 铁的发射强度提高了2.4倍, 检出限由原来的27.5×10^-3 μg/mL下降为8.5×10^-3 μg/mL. 将本方法应用于原油样品中铁的测定, 所得结果与火焰原子吸收光谱法测定结果一致.

关键词: 微波等离子体炬原子发射光谱法, 铁, 增敏, 镧

Abstract:

The sensitizing effects of surfactant and lanthanum on the determination of iron by microwave plasma torch atomic emission spectrometry(MPT-AES) were studied to solve the low detection sensitivity and weak resistance to matrix interference under low-power working condition using argon as carrier gas and working gas. The operating conditions and the influence of coexisting elements on the determination of iron were investigated in detail. The results show that the non-ionic surfactant has an inhibiting effect on the determination of iron, while cationic surfactant and lanthanum chloride have a sensitizing effect, and the lanthanum salt shows the best effect. Lanthanum salts used as sensitizer can not only increase the sensitivity of MPT-AES determination of iron, but also increase the allowable amount of coexisting elements. When the concentration of La³⁺ in the test system is 0.500 mg/mL, the determination of iron could not be interfered by at least 40 times of zinc, 30 times of cobalt, 20 times of nickel and manganese, 15 times of calcium, 10 times of magnesium, copper and sodium. The emission intensity of iron increased up to 2.4 times, and the detection limit decreased from 27.5×10^-3 μg/mL to 8.5×10^-3 μg/mL when using lanthanum salts as sensitizer. The method was applied to the determination of iron in crude oil samples, and the measured results agree with that obtained by flame atomic absorption spectrometry.

Key words: Microwave plasma torch atomic emission spectrometer, Iron, Sensitization, Lanthanum

中图分类号:

O657.31

TrendMD:

李佳慧, 张起凯, 赵杉林, 李萍. 微波等离子体炬原子发射光谱法测定铁增敏效应. 高等学校化学学报, 2017, 38(4): 547.

LI Jiahui, ZHANG Qikai, ZHAO Shanlin, LI Ping. Sensitization for Determination of Iron by Microwave Plasma Torch Atomic Emission Spectrometry^†. Chem. J. Chinese Universities, 2017, 38(4): 547.

图/表 9

Fig.1 Effects of different surfactants on iron emission intensity

Fig.2 Effect of lanthanum on iron emission intensity

Fig.3 Effect of sensitizer combined on iron emission intensity

Fig.4 Effect of power on iron emission intensity

Fig.5 Effect of carrier gas flow on iron emission intensity

Fig.6 Effect of working gas flow on iron emission intensity

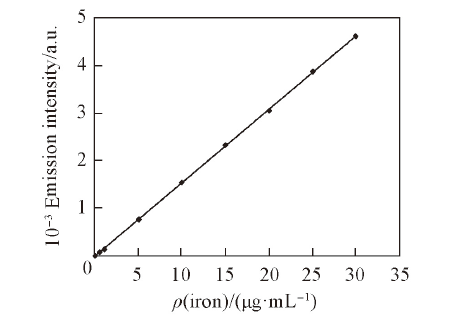

Fig.7 Standard curve of iron

Fig.8 Effect of acid on iron emission intensity

Table 1 Analytical results of iron in crude

Sample No.	Method	Found/(μg·g^-1)	Average/(μg·g^-1)	RSD(%)
1	MPT-AES	41.0, 40.8, 41.5, 43.1, 42.5, 41.8	41.8	2.1
	FAAS	40.8, 41.6, 43.7, 42.8, 42.0, 41.6	42.1	2.4
2	MPT-AES	26.5, 26.4, 26.9, 27.6, 26.4, 26.5	26.7	1.8
	FAAS	28.1, 27.4, 25.7, 26.6, 28.2, 27.9	27.3	3.6

参考文献 25

[1]	Zhang Q. K., Kong L. Z., Wang L., Chinese J. Anal. Lab., 2005, 24(1), 77—79
	(张起凯, 孔令照, 王丽. 分析试验室, 2005,24(1), 77—79)
[2]	Zhang J. S., Li L. H., PTCA(Part B: Chem.Anal.), 2007, 43(12), 1065—1067
	(张金生, 李丽华. 理化检验-化学分册, 2007,43(12), 1065—1067)
[3]	Lin Y., Li Y., He C. Y., PTCA(Part B: Chem. Anal.), 2009, 45(12), 1380—1382
	(林玉, 李怿, 何承耀. 理化检验-化学分册, 2009,45(12), 1380—1382)
[4]	Xu C. X., Cai L. F., Xiao C. X., Food Research and Development,2014, 35(3), 75—77
	(徐春秀, 蔡龙飞, 萧柽霞. 食品研究与开发, 2014,35(3), 75—77)
[5]	Zhou W., Xiong H. L., Feng G. D., Yu A. M., Chen H. W., Spectroscopy and Spectral Analysis, 2014, 34(6), 1671—1674
	(周炜, 熊海龙, 冯国栋, 于爱民, 陈焕文. 光谱学与光谱分析, 2014,34(6), 1671—1674)
[6]	Kong X. F., Jia Q., Zhou W. H., Microchemical Journal, 2007, 87(2), 132—138
[7]	Li X. P., Li L. H., Zhang J. S., Journal of Instrumental Analysis, 2007, 26(5), 754—756
	(李秀萍, 李丽华, 张金生. 分析测试学报, 2007,26(5), 754—756)
[8]	Zhang J., Li L., Zhang J., Zhang Q., Yang Y., Jin Q., Petroleum Science and Technology,2007, 25(4), 443—451
[9]	Gao H., Deng X. Q., He X. P., Applied Chemical Industry, 2014, 43(10), 1925—1927
	(高辉, 邓秀琴, 贺小平. 应用化工, 2014,43(10), 1925—1927)
[10]	Li L. H., Gao H., Zhang J. S., Zhang L. J., Li X. P., Metallurgical Analysis, 2007, 27(6), 41—44
	(李丽华, 高辉, 张金生, 张丽静, 李秀萍. 冶金分析, 2007,27(6), 41—44)
[11]	Zhang Q. K., Jiao J. Q., Metallurgical Analysis, 2012, 32(10), 60—63
	(张起凯, 焦金庆. 冶金分析, 2012,32(10), 60—63)
[12]	Zhang Q. K., Pu W. Q., Chemical Research and Application,2013, 25(1), 58—61
	(张起凯, 蒲万琼. 化学研究与应用, 2013,25(1), 58—61)
[13]	Wang X. J., Gao Y., Metallurgical Analysis, 2013, 33(4), 68—71
	(王晓菊, 高烨. 冶金分析, 2013,33(4), 68—71)
[14]	Sun H. W., Suo R., Spectroscopy and Spectral Analysis, 2008, 28(11), 2684—2690
	(孙汉文, 锁然. 光谱学与光谱分析, 2008,28(11), 2684—2690)
[15]	He W. L., Luo T., Zhou X., Xiong W., Liu M. S., Chinese Journal of Analysis Laboratory,2014, 33(1), 92—95
	(何文亮, 罗涛, 周璇, 熊伟, 刘谋盛. 分析试验室, 2014,33(1), 92—95)
[16]	Huang H., Li L., Ma Q., Feng Y. Q., He Z. K., Chinese Journal of Analytical Chemistry,2010, 38(2), 249—252
	(黄晖, 李丽, 马乔, 冯钰锜, 何治柯. 分析化学, 2010,38(2), 249—252)
[17]	Bai Y., OuYang J. M., Bai Y., Chen M. L., Spectroscopy and Spectral Analysis, 2004, 24(8), 1016—1019
	(白钰, 欧阳健明, 白燕, 陈美鸾. 光谱学与光谱分析, 2004,24(8), 1016—1019)
[18]	Xie J. C., He Z. L., Chinese Journal of Health Laboratory Technology,2010, 20(4), 733—734
	(谢金成, 何宗莉. 中国卫生检验杂志, 2010, 20(4), 733—734)
[19]	Zhao X. H., Wang X. Y., Guo P., Liu Y. C., Jiang Y. S., Rock and Mineral Analysis,2015, 34(1), 60—66
	(赵秀宏, 王鑫焱, 郭沛, 刘彦春, 姜雨杉. 岩矿测试, 2015, 34(1), 60—66)
[20]	Hassan T. A., American Journal of Environmental Sciences, 2011, 7(5), 409—414
[21]	Feng Q. C., Zheng S. Y., Chem. J. Chinese Universities, 1990, 11(8), 1043—1045
	(冯庆彩, 郑斯运. 高等学校化学学报, 1990,11(8), 1043—1045)
[22]	Wang F. Y., Wan J. L., Lu H. B., Xia W., Chemical Journal of Chinese Universities,1991, 12(12), 1581—1584
	(汪福意, 万家亮, 卢汉兵, 夏望. 高等学校化学学报, 1991,12(12), 1581—1584)
[23]	Xin R.X., Plasma Emission Spectrometry, Chemical Industry Press, Beijing, 2010, 161—162
	(辛仁轩. 等离子体发射光谱分析, 北京: 化学工业出版社, 2010, 161—162)
[24]	Cui X. M., Wu Z. M., Journal of Salt Lake Research,2013, 21(2), 62—65
	(崔香梅, 乌志明. 盐湖研究, 2013,21(2), 62—65)
[25]	Zhang Q. K., Zhang W. X., Li J. H, Wang C., Chemical Research and Application,2015, 27(7), 1078—1081
	(张起凯, 张文秀, 李佳慧, 王婵. 化学研究与应用, 2015,27(7), 1078—1081)
