基于原位结晶苯膦酸锆膜的油水分离网的制备及应用

doi:10.7503/cjcu20160575

高等学校化学学报 ›› 2017, Vol. 38 ›› Issue (3): 464.doi: 10.7503/cjcu20160575

基于原位结晶苯膦酸锆膜的油水分离网的制备及应用

李钦涛, 孙文, 张芹(), 潘惠芬, 徐杰

集美大学食品与生物工程学院, 厦门 361021

收稿日期:2016-08-11 出版日期:2017-03-10 发布日期:2017-01-23
作者简介:联系人简介: 张芹, 女, 博士, 副教授, 主要从事食品分析及表面物理化学研究. E-mail: qinzhang@jmu.edu.cn
基金资助:
国家自然科学基金(批准号: 21101073)、福建省自然科学基金(批准号: 2011J01053)和福建省教育厅杰青培育项目(批准号: JA11147)资助.

In Situ Crystallized Zirconium Phenylphosphonate Films on the Copper Mesh and Its Application in Oil/water Separation^†

LI Qintao, SUN Wen, ZHANG Qin^*(), PAN Huifen, XU Jie

College of Food and Bioengineering, Jimei University, Xiamen 361021, China

Received:2016-08-11 Online:2017-03-10 Published:2017-01-23
Contact: ZHANG Qin E-mail:qinzhang@jmu.edu.cn
Supported by:
† Supported by the National Nature Science Foundation of China(No.21101073), the Natural Science Foundation of Fujian Province, China(No.2011J01053) and the Fujian Education Department’s Project for Cultivation of Distinguished Young Scientists, China(No.JA11147).

摘要/Abstract

摘要：

运用水热法在铜网表面原位结晶生长苯膦酸锆, 获得微纳米级粗糙结构, 且苯环排列在苯膦酸锆表面的最外层, 使铜网具有超疏水和超亲油的性质, 无需任何低表面能物质修饰, 即可对油水混合物进行分离. 苯膦酸锆层与基底存在一定的结合力, 具有机械稳定性; 同时又具有抗酸碱的化学稳定性. 这种油水分离网不仅能够实现油水混合物的分离, 还可以实现乳化油的油水分离, 在实际生产运用过程中具有较好的应用前景.

关键词: 超疏水, 超亲油, 油水分离, 苯膦酸锆, 乳化油

Abstract:

In situ crystallized zirconium phenylphosphonate films on the copper mesh using hydrothermal method have superhydrophobic and superhydrophobic properties due to benzene ring being arranged in the outermost layer of zirconium phenyl phosphonate and its micro-nano roughened structure. This material can selectively filter oil from oil/water mixtures without any low-surface-energy material modification. The crystallized zirconium phenylphosphonate films on copper mesh have both mechanical stability and chemical stability. In addition to separation of oil/water mixtures, the copper mesh with ZrPP crystallization are capable of separating surfactant-free oil-in-water and water-in-oil emulsion efficiently, which can be a candidate to be applied in the actual production process.

Key words: Superhydrophobic, Superlipophilic, Oil/water separation, Zirconium phenylphosphonate, Emulsified oil

中图分类号:

O647.5

TrendMD:

李钦涛, 孙文, 张芹, 潘惠芬, 徐杰. 基于原位结晶苯膦酸锆膜的油水分离网的制备及应用. 高等学校化学学报, 2017, 38(3): 464.

LI Qintao, SUN Wen, ZHANG Qin, PAN Huifen, XU Jie. In Situ Crystallized Zirconium Phenylphosphonate Films on the Copper Mesh and Its Application in Oil/water Separation^†. Chem. J. Chinese Universities, 2017, 38(3): 464.

图/表 11

Fig.1 Contact angles(CA) of water droplets on crystalized copper-mesh surface with different reaction time

Fig.2 XRD patterns of the crystallized material(a) and the standard ZrPP(b)

Fig.3 FTIR spectrum of the crystallized material scraped on the copper mesh

Fig.4 SEM images of the copper mesh before and after crystallization as well as the contact angle of water droplets on their surface (A) Copper mesh; (B) crystallized copper mesh; (C) and (D) the magnified pictures of (B). The insets of (A) and (B) are the contact angle of water droplets on their respective surface.

Fig.5 Permeation process of oil droplets on the surface of copper mesh with ZrPP crystallization

Fig.6 Variation of contact angle of water droplets on copper mesh with ZrPP crystallization as a function of pH value

Fig.7 SEM images(A, B) of cross-section of ZrPP crystallization on copper mesh and the ×10 microscope image(C) of ZrPP crystallized surface scratched with knife

Fig.8 Oil/water separation through the copper mesh with ZrPP crystallization before(A) and after(B) separation Water is dyed by helianthin B.

Fig.9 Breakthrough pressure of water on copper mesh with ZrPP crystallization

Fig.10 Relationship between the pore diameter of mesh and the water contact angle on the copper mesh with ZrPP crystallization

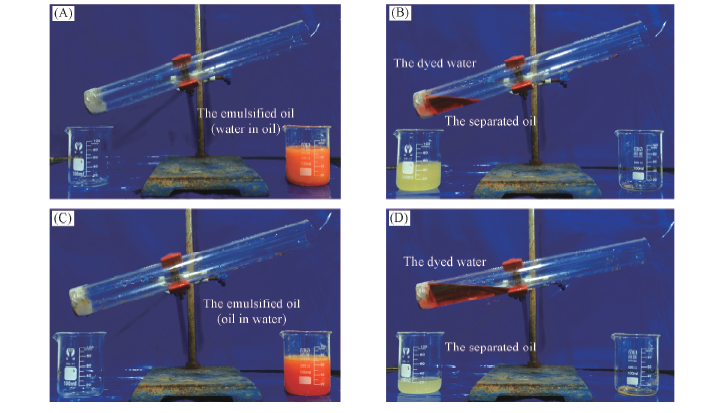

Fig.11 Emulsified oil separation through the copper mesh with ZrPP crystallization (A) and (B) are before and after separating process of oil-in-water emulsion; (C) and (D) are before and after separating process of water-in-oil emulsion.

参考文献 34

[1]	Aussillous P., Quere D., Nature,2001, 411(6840), 924—927
[2]	Gao X., Yan X., Yao X., Xu L., Zhang K., Zhang J., Yang B., Jiang L., Adv. Mater., 2007, 19(17), 2213—2217
[3]	Cao L., Jones A. K., Sikka V. K., Wu J., Gao D., Langmuir,2009, 25(21), 12444—12448
[4]	Ruan M., Li W., Wang B., Deng B., Ma F., Yu Z., Langmuir,2013, 29(27), 8482—8491
[5]	Wang N., Xiong D., Appl. Surf. Sci., 2014, 305, 603—608
[6]	Barkhudarov P. M., Shah P. B., Watkins E. B., Doshi D. A., Brinker C. J., Majewski J., Corros. Sci.2008, 50(3), 897—902
[7]	Bhushan B., Jung Y. C., Koch K., Philos. Trans. R. Soc. A,2009, 367(1894), 1631—1672
[8]	Fürstner R., Barthlott W., Neinhuis C., Walzel P., Langmuir,2005, 21(3), 956—961
[9]	Wang N., Xiong D., Colloids Surf. A, 2014, 446, 8—14
[10]	Udagawa H., J. Fluid Mech., 1999, 381, 225—238
[11]	Daniello R. J., Waterhouse N. E., Rothstein J. P., Phys. Fluids, 2009, 21(8), 085103-1—9
[12]	Feng L., Zhang Z. Y., Mai Z. H., Ma Y. M., Liu B. Q., Jiang L., Zhu D. B., Angew. Chem. Int. Ed., 2004, 43(15), 2012—2014
[13]	Yang H., Pi P. H., Cai Z. Q., Wen X. F., Wang X. B., Cheng J., Yang Z. R., Appl. Surf. Sci., 2010, 256(13), 4095—4102
[14]	Guo W., Zhang Q., Xiao H. B., Xu J., Li Q. T., Pan X. H., Huang Z. Y., Appl. Surf. Sci., 2014, 314, 408—414
[15]	Huang Y., Zhou J. M., Su B., Shi L., Wang J. X., Chen S. R., Wang L.B., Zi J., Song Y. L., J. Am. Chem. Soc., 2012, 134(41), 17053—17058
[16]	Song J. L., Huang S., Hu K., Lu Y., Liu X., Xu W., J. Mater. Chem. A, 2013, 1(46), 14783—14789
[17]	Wang Q. J., Cui Z., Xiao Y., Pan Q. M., Appl. Surf. Sci., 2010, 256, 4095—4102
[18]	Crick C. R., Gibbins J. A., Parkin I. P., J. Mater. Chem. A, 2013, 1(19), 5943—5948
[19]	Liu X. J., Ge L., Li W., Wang X. Z., Li F., ACS Appl. Mater. Interfaces, 2015, 7(1), 791—800
[20]	Wang C. X., Yao T. J., Wu J., Ma C., Fan Z. X., Wang Z. Y., Cheng Y. R., Lin Q., Yang B., ACS Appl. Mater. Interfaces, 2009, 1(11), 2613—2617
[21]	Lee C., Baik S., Carbon,2010, 48(8), 2192—2197
[22]	Lee C. H., Johnson N., Drelich J., Yap Y. K., Carbon,2011, 49(2), 669—676
[23]	Yi J. J., Li F., He J., Evans D. G., Wang Z. X., Duan X., J. B. Univ. Chem. Technol.,1998, 25(3), 59—63
	(义建军, 李峰, 何静, Evans D. G., 王作新, 段雪. 北京化工大学学报,1998, 25(3), 59—63)
[24]	Stein E. W., Clearfield A., Subramanian M. A., Solid State Ionics, 1996, 83(1/2), 113—124
[25]	Cui Z. H., Zhang F. Z., Wang L., Xu S. L., Guo X. X., Langmuir,2010, 26(1), 179—182
[26]	Lei X. D., Wang L., Cui Z. H., Xu S. L., Zhang F. Z., Thin Solid Films, 2011, 519, 3552—3556
[27]	Clearfield A., Journal of Alloys and Compounds, 2006, 418, 128—138
[28]	Clearfield A., Wang J. D., Tian Y., Stein E., Bhardwaj C., Journal of Solid State Chemistry,1995, 117, 275—289
[29]	Beving D. E., McDonnell A. M. P., Yang W. S., Yan Y. S., J. Electrochem. Soc., 2006, 153, B325—B329
[30]	Zhang F. Z., Sun M., Xu L. S., Zhao L. L., Zhang B. W., Chem. Eng. J., 2008, 141, 362—367
[31]	Zhang W. F., Liu N., Cao Y. Z., Chen Y. N., Xu L. X., Lin X., Feng L., Adv. Mater., 2015, 27, 7349—7355
[32]	Si Y. F., Guo Z. G., Chem. Lett., 2015, 44, 874—883
[33]	Cheryan M., Rajagopalan N., J. Membr. Sci., 1998, 151, 13—28
[34]	Zhu Y., Zhang F., Wang D., Pei X. F., Zhang W., Jin J., J. Mater. Chem. A, 2013, 1, 5758—5865
	(Ed.:V, Z, K)
