Sodium Storage Performance of Mixed-phase Sodium Titanate Tuned by Carbon Dots

doi:10.7503/cjcu20240356

Abstract

Abstract:

Na₂Ti₃O₇ and Na₂Ti₆O₁₃ are two typical titanate-based sodium-storage materials， featuring the high theoretical capacity and favorable structure stability， respectively. Regulating the ratio of them in the composite material is the key to strengthen its electrochemical characteristics. Herein， based on the high specific surface area and abundant surface functional groups of carbon dots（CDs）， sodium titanate precursors containing CDs were in situ prepared by one-step hydrothermal method. After the thermal conversion of the precursors， a composite material（NNTO/C） of Na₂Ti₃O₇ and Na₂Ti₆O₁₃ was obtained， containing conductive carbon derived from CDs. The introduction of conductive carbon not only adjusts the composition ratio of the mixed phases， but also provides a small charge transfer impedance（R_ct， 7.48 Ω） and a big specific surface area（100.8 m²/g）. As a result， NNTO/C composites exhibit better sodium storage behavior while playing the synergistic interaction of mixed phases. When employed as the anode， after 200 cycles at 0.05 A/g， NNTO/C still maintains a specific capacity of 143.8 mA‧h/g. After 400 cycles at 1.00 A/g， the specific capacity remains as high as 108 mA‧h/g. This study suggests an innovative thinking for designing two-phase structures of electrode materials and the greater use of CDs in electrochemical energy storage.

Key words: Na₂Ti₃O₇, Na₂Ti₆O₁₃, Mixed-phases, Carbon dots, Sodium storage behavior

CLC Number:

O614

TrendMD:

LI Dan, HU Honghui, HOU Hongshuai, ZHANG Sheng, LIU Lijie, JING Mingjun, WU Tianjing. Sodium Storage Performance of Mixed-phase Sodium Titanate Tuned by Carbon Dots[J]. Chem. J. Chinese Universities, 2025, 46(6): 20240356.

Figures/Tables 7

Fig.1 SEM images of NNTO(A) and NNTO/C(B), TEM(C) and HRTEM images(D) of NNTO/C

Fig.2 XRD patterns of NNTO and NNTO/C composites(A), Rietveld refinement(B), Raman analysis(C) and TGA profiles(D) of NNTO/C sample

Fig.3 N2 adsorption⁃desorption isotherms and pore size distributions(insets) of NNTO/C(A) and NNTO(B)

Fig.4 XPS survey(A) and high resolution spectra for Ti2p (B), O1s (C) and C1s (D) of NNTO/C

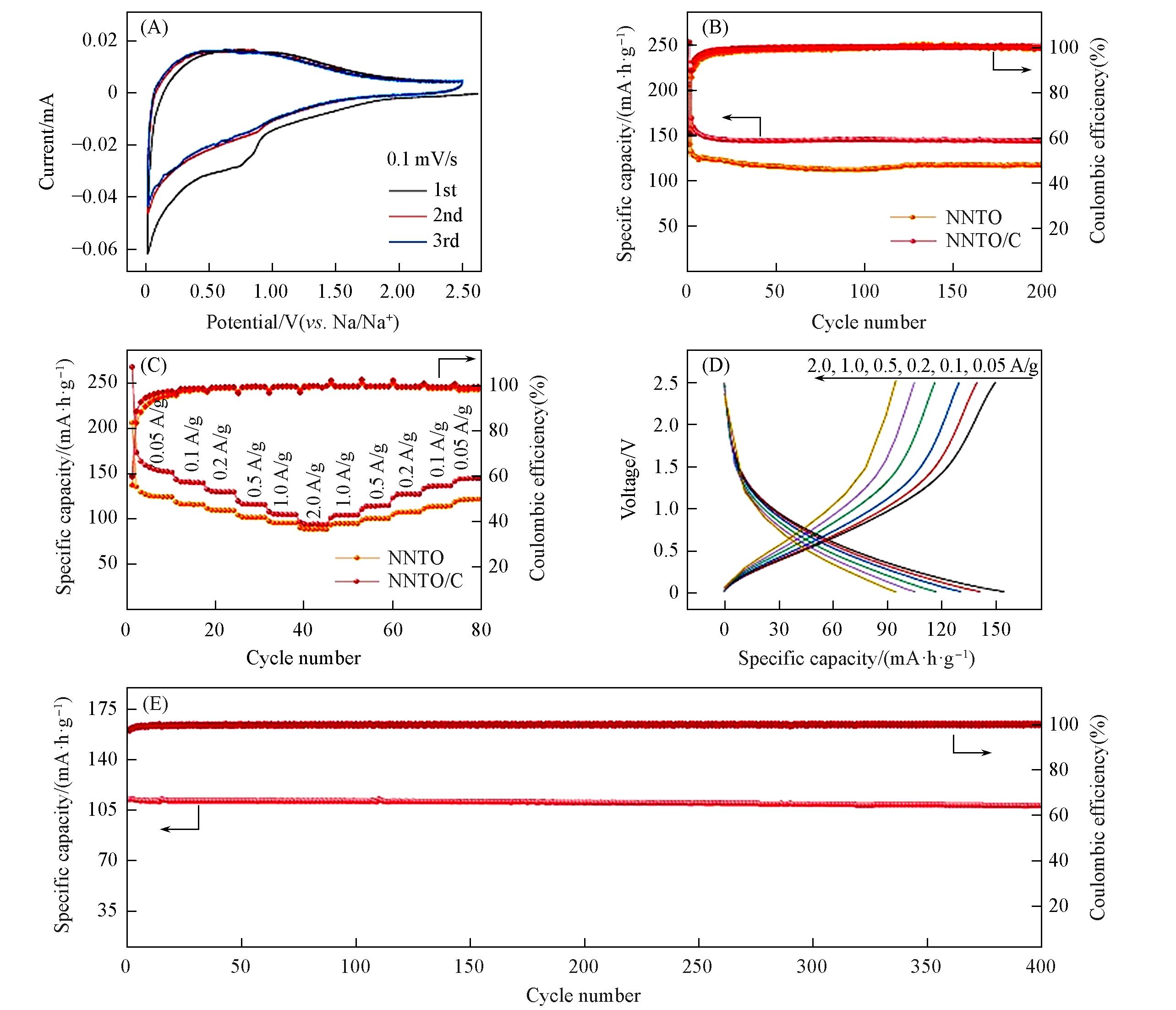

Fig.5 CV plots of NNTO/C at 0.1 mV/s(A), cycling performances of NNTO/C and NNTO at 0.05 A/g(B), rate capabilities of NNTO/C and NNTO(C), charge⁃discharge curves of NNTO/C(D), cycling properties of NNTO/C at 1.00 A/g(E)

Fig.6 CV plots at various sweep speeds(A), capacitive and diffusive contributions at 0.2 mV/s(B), diffusion and pseudo⁃capacitive contributions at various scan rates of NNTO/C(C)

Fig.7 Nyquist plots(A), GITT profiles(B) and Na+ diffusion coefficient(C) of NNTO/C and NNTO
