[Commemorative Album for the 100th Anniversary of Mr. Tang Xinyi's Birth]Preparation of Conductive PEEK/PANI Films

doi:10.7503/cjcu20250326

Chem. J. Chinese Universities

• Article • Previous Articles Next Articles

[Commemorative Album for the 100th Anniversary of Mr. Tang Xinyi's Birth]Preparation of Conductive PEEK/PANI Films

ZHAO xu¹，LIN ziyu²，ZHAO zhe¹，RENG qiang¹，DING siwen¹，ZHAO jiansheng¹，SHEN lu¹，PANG jinhui¹，JIANG zhenhua¹

1. Engineering Research Center of High Performance Plastics，Ministry of Education，College of Chemistry，Jilin University 2. School of Life Science and Technology，Beijing University of Chemical Technology

Received:2025-11-02 Revised:2025-12-09 Online:2025-12-10 Published:2025-12-10
Supported by:
Supported by the Jilin Province Natural Science Foundation (No.: 20250102059JC)

Abstract

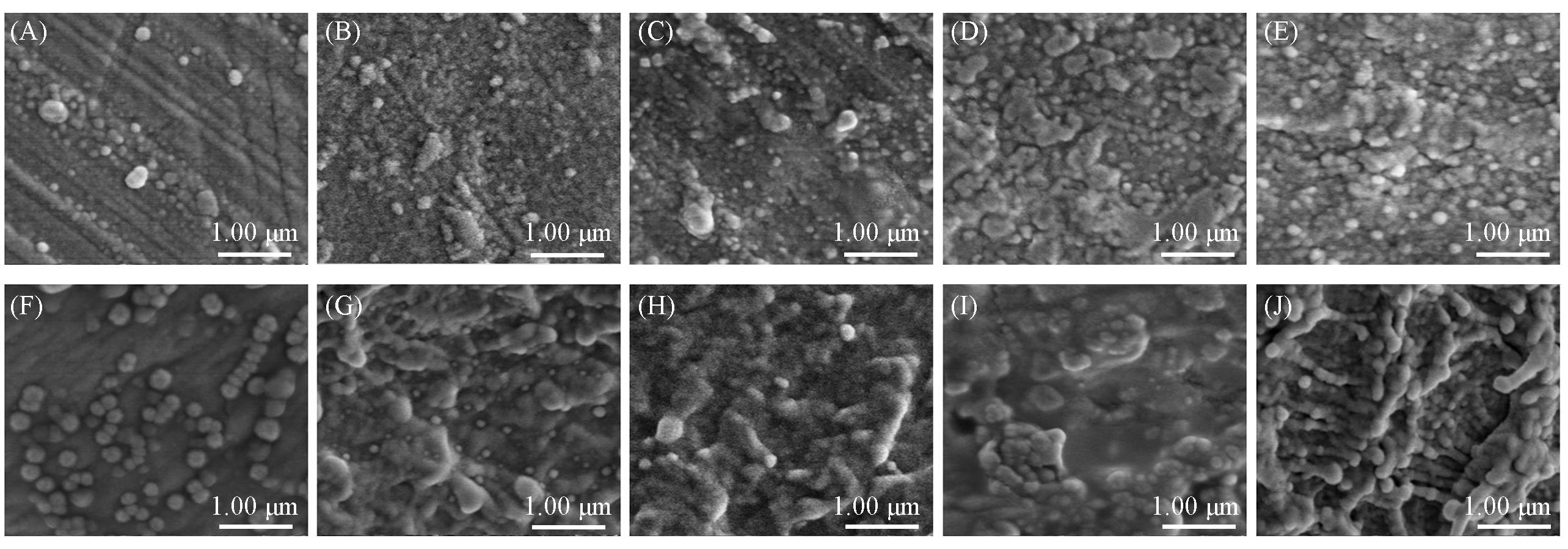

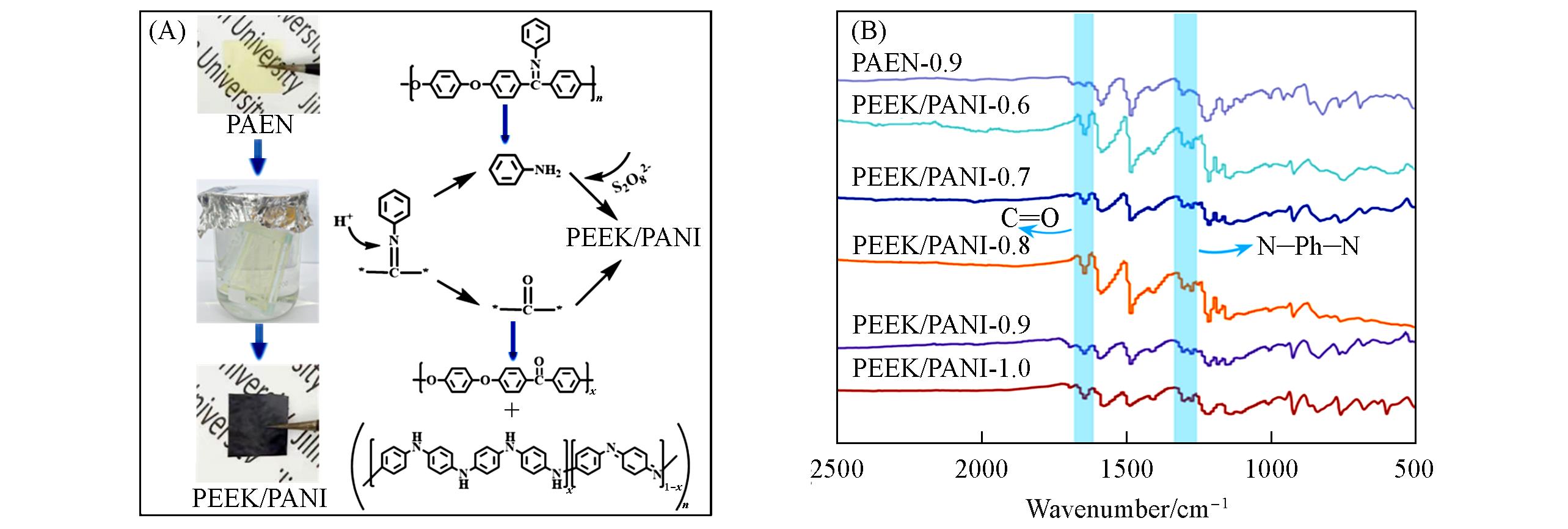

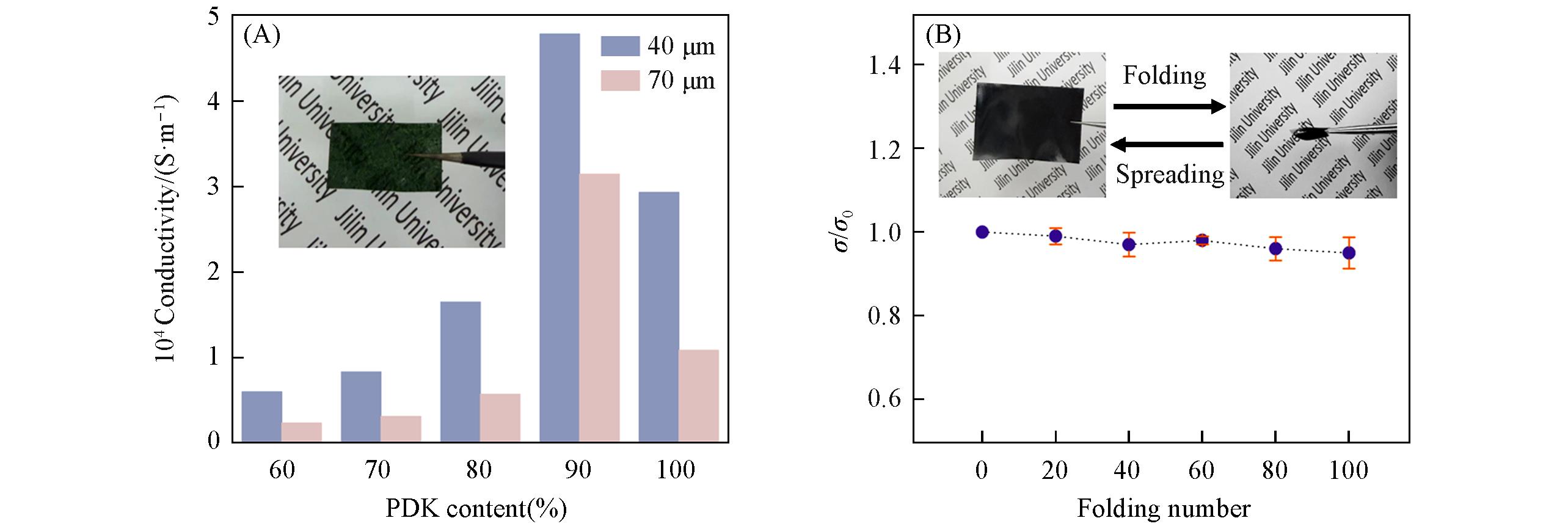

Abstract: To address the issues of polyaniline (PANI) aggregation and thermal degradation in conventional melt-blended PEEK/PANI composites, we developed a one-step in-situ synthesis method starting from copolymer precursor films. A series of precursor films based on PAEN copolymer were prepared by varying the molar ratio of the key monomers, N-phenyl (4,4′-difluorodiphenyl) ketone-amine and 4,4′-difluorodiphenyl ketone. These precursors were subsequently converted into PEEK/PANI composite films through side-chain hydrolysis and oxidative coupling. The composite film with a 9:1 monomer ratio (denoted as PEEK/PANI-0.9) exhibited the best overall performance. Scanning electron microscopy (SEM) revealed a dense and uniform surface morphology without obvious pores. Electrically, a 40 μm-thick PEEK/PANI-0.9 film achieved a conductivity of 4.78×10?? S·m?1. In summary, this method successfully produces PEEK films with well-dispersed, rich PANI content, showing promise for applications in areas requiring conductivity, antistatic protection, electromagnetic shielding, and wave absorption.

Key words: One-step in situ synthesis method, Conductive materials, PEEK, PANI

CLC Number:

O631

TrendMD:

ZHAO xu, LIN ziyu, ZHAO zhe, RENG qiang, DING siwen, ZHAO jiansheng, SHEN lu, PANG jinhui, JIANG zhenhua. [Commemorative Album for the 100th Anniversary of Mr. Tang Xinyi's Birth]Preparation of Conductive PEEK/PANI Films[J]. Chem. J. Chinese Universities, doi: 10.7503/cjcu20250326.
