Determination of Trace-amount Calcium in Drinking Water by Microwave Plasma Torch Mass Spectrometry†

doi:10.7503/cjcu20150503

Abstract

Abstract:

A method for the determination of trace-amount calcium in drinking water by common organic mass spectroscopy was developed. Meanwhile, microwave plasma torch was introduced as ionization source and low-cost ion trap was introduced as mass analyzer. The operation parameters including flow rates of working gas and carrying gas were studied and optimized. Under the optimal experimental conditions, the micro-amount calcium in well water, tap water and bottled water were determined. In order to minimize the matrix effects in the real samples, the standard addition analysis method was employed. The limit of detection was 3.88 ng/L, and the relative standard deviations(RSD) were 2.87%—8.04%. Recoveries were determined between 101.3% and 115.1%. Experimental results indicated that the novel analytical strategy based on MPT-LTQ-MS for qualitation and quantitation of micro-amount calcium in drinking waters was simple and convenient. And its precision and accuracy meet the demand of determination. Furthermore, compared with ICP-MS, MPT-LTQ-MS was low-cost including instrument and maintenance. The proposed method is a novel and promising strategy for detection of micro-amount calcium in drinking waters.

Key words: Microwave plasma torch, Ion trap, Mass spectroscopy, Drinking water, Calcium

CLC Number:

O657.6

TrendMD:

ZHONG Tao, YANG Meiling, PEI Miaorong, ZHANG Xinglei, LE Zhanggao, WANG Guangcai, CHEN Huanwen. Determination of Trace-amount Calcium in Drinking Water by Microwave Plasma Torch Mass Spectrometry^†[J]. Chem. J. Chinese Universities, 2016, 37(1): 26.

Figures/Tables 7

Fig.1 Experimental schematic of MPT-MS

Fig.2 MPT-MSn spectra of standard solution of calcium^(A) MPT-MS spectrum; (B) MS2 spectrum of m/z 138; (C) MS3 spectrum of m/z 138.

Fig.3 Experimental(a) and theoretical(b) high resolution mass spectra of standard solution of calcium ^ (A) [Ca(NO3)·3H2O]+; (B) [Ca(NO3)·2H2O]+; (C) [Ca(NO3)·H2O]+.

Fig.4 Optimization parameters of MPT working conditions^ (A) Flow rate of carrier gas; (B) flow rate of support gas.

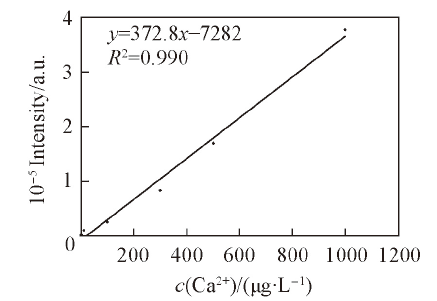

Fig.5 Calibration curve of calcium

Table 1 Detection results of real samples

Sample	Dilution factor	Linear equation	Correlation coefficient	Determined/(μg·L^-1)
Nongfu spring	10	y=71.56x+37184	0.993	520.0
Huosanmi	100	y=43.79x+2345	0.994	54.0
Tap water	100	y=44.85x+6326	0.994	141.0
Well water	100	y=60.80x+1311	0.990	21.6
Kunlun	100	y=61.53x+13726	0.999	223.0
Bamalilang	100	y=59.40x+20807	0.998	342.0

Table 2 Recoveries of real samples

Sample	Added/(μg·L^-1)	Founded/(μg·L^-1)	Recovery(%)	RSD(%)
Nongfu spring	500	526	105.2	3.49
Huosanmi	50	54	107.8	8.04
Tap water	150	152	101.3	2.87
Well water	20	23	115.1	6.69
Kunlun	200	229	114.5	3.64
Bamalilang	350	373	106.5	5.79

References 28

[1]	Xue Y. H., Sun Z. G., Chinese J. Spectrosc. Lab., 2011, 28 (4),1731—1734)
	(薛彦辉, 孙中国. 光谱实验室,2011, 28 (4), 1731—1734)
[2]	Chen N. S., Guo X. Y., Sun C. J., J. Environ. Health, 2004, 21(5), 335—336
	(陈宁生, 郭新愿, 孙传江. 环境与健康杂志,2004, 21(5), 335—336)
[3]	Zhang Z., Shao C. Y., Wen X. H., He Z. F., Rock and Mineral Anal., 2010, 29(5), 621—62
	4(张琢, 邵超英, 温晓华, 何中发. 岩矿测试, 2010, 29(5), 621—624)
[4]	Uzdaviniene D., Tautkus S., Chemija,2007, 18(4), 34—37
[5]	Soliman E. M., Ahmed S. A., Anal. Sci., 2010, 26(4), 473—478
[6]	Vahdati-Mashhadian N., Balali-Mood M., Sadeghi M., Zanjani B. R., J. Chem. Soc. Pakistan., 2012, 34(5), 1323—1325
[7]	Zhang X. A., Zeng S. Q., Li G. X., Xu H. Y., Yin Z. P., Xu Y. C., Food Ind., 2013, 34(12), 220—222
	(张显安, 曾石峭, 李冠新, 许洪勇, 殷兆平, 徐育成. 食品工业, 2013, 34(12), 220—222)
[8]	Liu Y. H., Yang W. W., Admin. Tech. Environ. Monit., 2010, 22(4), 53—54
	(刘耀华, 杨文武. 环境监测管理与技术,2010, 22(4), 53—54)
[9]	Zheng F., Fujian Anal. Test., 2004, 13(3/4), 2031—2033
	(郑芳. 福建分析测试, 2004, 13(3/4), 2031—2033)
[10]	Huo J. Z., Duan X. C., Metall. Anal., 2013, 33(8), 55—58
	( 霍建中, 段旭川. 冶金分析, 2013, 33(8), 55—58)
[11]	El-Himri M., El-Himri A., Pastor A., Guardia M. D. L., J. Appl. Tech. Environ. Sanit., 2012, 2(1), 39—44
[12]	Jin Q.H., Yang G. D., Yu A. M., Liu J., Zhang H. Q., Ben Y. Z., J. Jilin University(Sci. Ed.), 1985, (1), 90—92
	(金钦汉, 杨广德, 于爱民, 刘军, 张寒琦, 贲跃芝. 吉林大学自然科学学报, 1985, (1), 90—92)
[13]	Jin W., Yu B. W., Zhu D., Ying Y. W., Yu H. X., Jin Q. H., Chinese J. Chinese Universities, 2015, 36(11), 2157—2159
	(金伟, 于丙文, 朱旦, 应仰威, 于海翔, 金钦汉. 高等学校化学学报, 2015, 36(11), 2157—2159)
[14]	Jin Q.H., Zhou J. G., Cao Y. B., Zhang H. Q., Yu A. M., Yang W. J., Liang F., Huan Y. F., Xu B.,Mod. Sci. Instrum., 2002, (4), 3—11
	(金钦汉, 周建光, 曹彦波, 张寒琦, 于爱民, 杨文军, 梁枫, 郇延富, 徐彬. 现代科学仪器, 2002, (4), 3—11)
[15]	Yang W. J., Zhang H. Q., Yu A. M., Jin Q. H., Microchem. J., 2000, 66(1—3), 147—170
[16]	Meng H., Feng G. D., Jiang J., Huan Y. F., Jin Q. H., Phys. Test. Chem. Anal. Part B,2005, 41(5), 313—315
	(孟辉, 冯国栋, 姜杰, 郇延富, 金钦汉. 理化检验(化学分册), 2005, 41(5), 313—315)
[17]	Zhang J. S., Li L. H., Zhang J. P., Jin Q. H., Chem. J. Chinese Universities, 2004, 25(7), 1248—1250
	(张金生, 李丽华, 张金平, 金钦汉. 高等学校化学学报, 2004, 25(7), 1248—1250)
[18]	Duan Y. X., Du X. G., Liu J., Jin Q. H., Liu M. Z., Shi W., Chinese J. Anal. Chem., 1993, 21(5), 610—614
	(段忆翔, 杜晓光, 刘军, 金钦汉, 刘明钟, 施文. 分析化学, 1993, 21(5), 610—614)
[19]	Pack B. W., Broekaert J. a. C., Guzowski J. P., Poehlman J., Hieftje G. M., Anal. Chem., 1998, 70(18), 3957—3963
[20]	Zhang T. Q., Jin W., Zhou J. G., Zhang Y., Zhu Z. Q., Zhou W., Jin Q. H., Chinese J. Anal. Chem., 2012, 33(9), 1938—1944
	(张体强, 金伟, 周建光, 张莹, 朱志强, 周炜, 金钦汉. 高等学校化学学报, 2012, 33(9), 1938—1944)
[21]	Zhang T. Q., Zhou W., Jin W., Zhou J. G., Handberg E., Zhu Z. Q., Chen H. W., Jin Q. H., J. Mass. Spectrom., 2013, 2013(48), 669—676
[22]	Zhou W., Xiong H. L., Yang M. L., Chen H. W., Qu Y., Zhang X. L., Fang X. W., Rock and Mineral Anal., 2014, 33(6), 782—788
	(周炜, 熊海龙, 杨美玲, 陈焕文, 屈颖, 张兴磊, 方小伟. 岩矿测试, 2014, 33(6), 782—788)
[23]	Wan T. Q., Yu D. D., Zhang T. Q., Zhang X. W., Zhou J. G., Procedia Eng., 2010, 7(2010), 22—27
[24]	Luo M. B., Hu B., Zhang X., Peng D. F., Chen H. W., Zhang L. L., Huan Y. F., Anal. Chem., 2010, 82(1), 282—289
[25]	Liu C. X., Hu B., Shi J. B., Li J. Q., Zhang X. L., Chen H. W., J. Anal. Atom. Spectrom., 2011, 26(10), 2045—2051
[26]	Liu C. X., Zhang X. L., Xiao S. J., Jia B., Cui S. S., Shi J. B., Xu N., Xie X., Gu H. W., Chen H. W., Talanta,2012, 98(11), 79—85
[27]	Liu C. X., Ouyang Y. Z., Jia B., Zhu Z. Q., Shi J. B., Chen H. W., J. Mass. Spectrom., 2012, 47(6), 769—777
[28]	Ding J. H., Gu H. W., Yang S. P., Li M., Li J. Q., Chen H. W., Anal. Chem., 2009, 81(20), 8632—8638
