Chem. J. Chinese Universities ›› 2014, Vol. 35 ›› Issue (6): 1293.doi: 10.7503/cjcu20131250
• Physical Chemistry • Previous Articles Next Articles
LU Shanfu*(), LIU Yiyang, XIANG Yan
Received:
2013-12-19
Online:
2014-06-10
Published:
2014-03-24
Contact:
LU Shanfu
E-mail:lusf@buaa.edu.cn
Supported by:
CLC Number:
TrendMD:
LU Shanfu, LIU Yiyang, XIANG Yan. Preparation of PVP-based Iodine-iodide Gel-electrolyte and Its Application in DSSCs†[J]. Chem. J. Chinese Universities, 2014, 35(6): 1293.

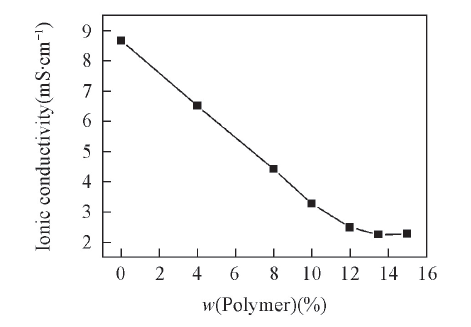

Fig.5 Raman spectra of the gel electrolyte based on different molar ratios of LiI/I2(A) and the intensity of the band at 111 cm-1(B) c(I2)=0.042 mol/L.
Fig.6 J-V curves of DSSCs based on different gel electrolytes(A) Photocurrent-voltage curves; (B) dark current-voltage curves. a. w(Polymer)=10%, n(LiI)∶n(I2)=30∶1; b. w(Polymer)=10%, n(LiI)∶n(I2)=20∶1; c. w(Polymer)=12%, n(LiI)∶n(I2)=30∶1; d. w(Polymer)=10%, n(LiI)∶n(I2)=35∶1.
Fig.7 EIS spectra of DSSCs based on different gel electrolytesThe lines are the fitting results. The inset is the equivalent circuit to fit the DSSCs impedance spectroscopy[26-29] ; CPE1, CPE2 and CPEW: non-ideal frequency dependent capacitance.
w(Polymer)(%) | n(LiI)∶n(I2) | σ/ (mS·cm-1) | Voc/V | Jsc/ (mA·cm-2) | FF(%) | η(%) | Rs/Ω | R1/Ω | R2/Ω | Rw/Ω |
---|---|---|---|---|---|---|---|---|---|---|
10 | 20∶1 | 2.77 | 0.693 | 9.66 | 52.4 | 3.51 | 20.4 | 39.6 | 10.6 | 42.1 |
10 | 30∶1 | 3.27 | 0.737 | 11.54 | 53.1 | 4.52 | 18.5 | 29.6 | 10.1 | 24.3 |
10 | 35∶1 | 2.95 | 0.680 | 10.56 | 48.2 | 3.46 | 17.7 | 23.5 | 10.3 | 45.3 |
12 | 30∶1 | 2.89 | 0.706 | 8.49 | 53.4 | 3.20 | 21.3 | 31.8 | 10.3 | 27.7 |
Table 1 Performance of DSSCs based on different gel electrolytes*
w(Polymer)(%) | n(LiI)∶n(I2) | σ/ (mS·cm-1) | Voc/V | Jsc/ (mA·cm-2) | FF(%) | η(%) | Rs/Ω | R1/Ω | R2/Ω | Rw/Ω |
---|---|---|---|---|---|---|---|---|---|---|
10 | 20∶1 | 2.77 | 0.693 | 9.66 | 52.4 | 3.51 | 20.4 | 39.6 | 10.6 | 42.1 |
10 | 30∶1 | 3.27 | 0.737 | 11.54 | 53.1 | 4.52 | 18.5 | 29.6 | 10.1 | 24.3 |
10 | 35∶1 | 2.95 | 0.680 | 10.56 | 48.2 | 3.46 | 17.7 | 23.5 | 10.3 | 45.3 |
12 | 30∶1 | 2.89 | 0.706 | 8.49 | 53.4 | 3.20 | 21.3 | 31.8 | 10.3 | 27.7 |
Time/d | Voc/V | Jsc/(mA·cm-2) | FF(%) | η(%) | Time/d | Voc/V | Jsc/(mA·cm-2) | FF(%) | η(%) |
---|---|---|---|---|---|---|---|---|---|
0 | 0.65 | 12.9 | 47.0 | 3.94 | 15 | 0.67 | 11.0 | 60.8 | 4.47 |
6 | 0.64 | 13.6 | 59.5 | 5.18 | 28 | 0.68 | 10.0 | 67.9 | 4.63 |
12 | 0.66 | 11.1 | 62.7 | 4.62 | 34 | 0.66 | 10.2 | 63.5 | 4.29 |
Table 2 Performance of DSSCs during a long time
Time/d | Voc/V | Jsc/(mA·cm-2) | FF(%) | η(%) | Time/d | Voc/V | Jsc/(mA·cm-2) | FF(%) | η(%) |
---|---|---|---|---|---|---|---|---|---|
0 | 0.65 | 12.9 | 47.0 | 3.94 | 15 | 0.67 | 11.0 | 60.8 | 4.47 |
6 | 0.64 | 13.6 | 59.5 | 5.18 | 28 | 0.68 | 10.0 | 67.9 | 4.63 |
12 | 0.66 | 11.1 | 62.7 | 4.62 | 34 | 0.66 | 10.2 | 63.5 | 4.29 |
Type of electrolyte | η(%) | Ref. | Type of electrolyte | η(%) | Ref. |
---|---|---|---|---|---|
PVP+PVDF+LiI+EC-PC | 5.18 | This work | Poly(HDT/PEG)+PANi+ NMP-AC | 6.81 | [ |
PAN+Prop4NI+EC-PC | 4.30 | [ | PVA+KI EC-PC | 2.74 | [ |
POEM+PMII+EMIBF4 | 6.28 | [ | PVB+LiI+GBL-NMP | 4.86 | [ |
Table 3 Performanceof DSSCs according to the recent reported references*
Type of electrolyte | η(%) | Ref. | Type of electrolyte | η(%) | Ref. |
---|---|---|---|---|---|
PVP+PVDF+LiI+EC-PC | 5.18 | This work | Poly(HDT/PEG)+PANi+ NMP-AC | 6.81 | [ |
PAN+Prop4NI+EC-PC | 4.30 | [ | PVA+KI EC-PC | 2.74 | [ |
POEM+PMII+EMIBF4 | 6.28 | [ | PVB+LiI+GBL-NMP | 4.86 | [ |
[1] | O’regan B., Grfitzeli M., Nature, 1991, 353, 737-740 |
[2] | Yella A., Lee H. W., Tsao H. N., Yi C., Chandiran A. K., Nazeeruddin M. K., Diau E. W. G., Yeh C. Y., Zakeeruddin S. M., Grätzel M., Science, 2011, 334(6056), 629-634 |
[3] | Dong R. X., Shen S. Y., Chen H. W., Wang C. C., Shih P. T., Liu C. T., Vittal R., Lin J. J., Ho K. C., J. Mater. Chem. A, 2013, 1(29), 8471-8478 |
[4] | Yin X. O., Tan W. W., Xiang W. C., Lin Y. A., Zhang J. B., Xiao X. R., Li X. P., Zhou X. W., Fang S. B., Electrochim. Acta, 2010, 55(20), 5803-5807 |
[5] | Lee H. S., Han C. H., Sung Y. M., Sekhon S. S., Kim K. J., Current Applied Physics, 2011, 11(1), S158-S162 |
[6] | Lim S. J., Kang Y. S., Kim D. W., Electrochim. Acta, 2011, 56(5), 2031-2035 |
[7] | Wu J. H., Hao S., Lan Z., Lin J. M., Huang M. L., Huang Y. F., Fang L. Q., Yin S., Sato T., Adv. Funct. Mater., 2007, 17(15), 2645-2652 |
[8] | Chang L. Y., Lee C. P., Vittal R., Lin J. J., Ho K. C., J. Mater. Chem. A, 2013, 1(9), 3055-3060 |
[9] | Park S. H., Song I. Y., Lim J., Kwon Y. S., Choi J., Song S., Lee J. R., Park T., Energy & Environmental Science, 2013, 6(5), 1559-1564 |
[10] | Wang Y. M., Sol. Energ. Mat. Sol. C, 2009, 93(8), 1167-1175 |
[11] | Guo L., Dai S. Y., Wang K. J., Fang X. Q., Shi C. W., Pan X., Chem. J. Chinese Universities, 2005, 26(10), 1934-1937 |
(郭力, 戴松元, 王孔嘉, 方霞琴, 史成武, 潘旭.高等学校化学学报, 2005,26(10), 1934-1937) | |
[12] | Huo Z. P., Dai S. Y., Zhang C. N., Liu W. Q., Fang X. Q., Cai M. L., Guo L., Wang K. J., Jiang N. Q., Zheng Y. Z., Chem. J. Chinese Universities, 2009, 30(6), 1214-1218 |
(霍志鹏, 戴松元, 张昌能, 刘伟庆, 方霞琴, 蔡墨朗, 郭磊, 王孔嘉, 姜年权, 郑亦庄.高等学校化学学报, 2009,30(6), 1214-1218) | |
[13] | Yu Q. J., Yu C. L., Guo F. Y., Wang J. Z., Jiao S. J., Gao S. Y., Li H. T., Zhao L. C., Energy & Environmental Science, 2012, 5(3), 6151-6155 |
[14] | De Faria D., Gil H., de Queiroz A., J. Mol. Struct., 1999, 478(1), 93-98 |
[15] | Wu J. H., Li P. J., Hao S. C., Yang H. X., Lan Z., Electrochim. Acta, 2007, 52(17), 5334-5338 |
[16] | Cha S. Y., Lee Y. G., Kang M. S., Kang Y. S., J. Photochem. Photobiol. A: Chem., 2010, 211(2), 193-196 |
[17] | Benedetti J. E., Correa A. A., Carmello M., Almeida L. C. P., Goncalves A. S., Nogueira A. F., J. Power Sources, 2012, 208, 263-270 |
[18] | Chen C. L., Chang T. W., Teng H. S., Wu C. G., Chen C. Y., Yang Y. M., Lee Y. L., Phys. Chem. Chem. Phys., 2013, 15(10), 3640-3645 |
[19] | Hsu S. Y., Tsai C. H., Lu C. Y., Tsai Y. T., Huang T. W., Jhang Y. H., Chen Y. F., Wu C. C., Chen Y. S., Org. Electron., 2012, 13(5), 856-863 |
[20] | Li Q. H., Chen H. Y., Lin L., Li P. J., Qin Y. C., Li M. J., He B. L., Chu L., Tang Q. W., J. Mater. Chem. A, 2013, 1(17), 5326-5332 |
[21] | Ganesan S., Mathew V., Paul B. J., Maruthamuthu P., Suthanthiraraj S. A., Electrochim. Acta, 2013, 102, 219-224 |
[22] | Jerman I., Jovanovski V., Šurca Vuk A.,Houek M., Jesih A., Orel B., Electrochim. Acta, 2008, 53(5), 2281-2288 |
[23] | Lan Z., Wu J., Wang D., Hao S., Lin J., Huang Y., Sol. Energy, 2006, 80(11), 1483-1488 |
[24] | Eschen T., Kösters J., Schönhoff M., Stolwijk N. A., J. Phys. Chem. B, 2012, 116(28), 8290-8298 |
[25] | Nazeeruddin M. K., Kay A., Rodicio I., Humphry-Baker R., Müller E., Liska P., Vlachopoulos N., Grätzel M., J. Am. Chem. Soc., 1993, 115(14), 6382-6390 |
[26] | Liu W. Q., Kou D. X., Hu L. H., Dai S. Y., Chem. J. Chinese Universities, 2012, 33(9), 2051-2055 |
(刘伟庆, 寇东星, 胡林华, 戴松元.高等学校化学学报, 2012,33(9), 2051-2055) | |
[27] | Lai Y. H., Lin C. Y., Chen J. G., Wang C. C., Huang K. C., Liu K. Y., Lin K. F., Lin J. J., Ho K. C., Sol. Energ. Mat. Sol. C, 2010, 94(4), 668-674 |
[28] | Zhang Y. G., Zhao J., Sun B. Q., Chen X. J., Li Q., Qiu L. H., Yan F., Electrochim. Acta, 2012, 61, 185-190 |
[29] | Wang Q., Moser J. E., Grätzel M., J. Phys. Chem. B, 2005, 109(31), 14945-14953 |
[30] | Rong Y., Li X., Liu G., Wang H., Ku Z., Xu M., Liu L., Hu M., Yang Y., Zhang M., Liu T., Han H., J. Power Sources, 2013, 235, 243-250 |
[31] | Bandara T., Jayasundara W., Dissanayake M., Furlani M., Albinsson I., Mellander B. E., Electrochim. Acta, 2013, 109, 609-616 |
[32] | Aziz M. F., Noor I. M., Sahraoui B., Arof A. K., Opt. Quant. Electron., 2014, 46(1), 133-141 |
[33] | Chen K. F., Liu C. H., Hsieh C. K., Lin C. L., Huang H. K., Tsai C. H., Chen F. R., J. Power Sources, 2014, 247, 939-946 |
