Chem. J. Chinese Universities ›› 2017, Vol. 38 ›› Issue (2): 284.doi: 10.7503/cjcu20160630
• Polymer Chemistry • Previous Articles Next Articles
GUO Zhenghong*(), FANG Zhengping, CHEN Chao
Received:
2016-09-07
Online:
2017-02-10
Published:
2016-12-13
Contact:
GUO Zhenghong
E-mail:guozhenghong@nit.zju.edu.cn
Supported by:
CLC Number:
TrendMD:
GUO Zhenghong, FANG Zhengping, CHEN Chao. Synergistic Flame Retardant and Suppression Smoke Mechanism of Cerium Phenylphosphonate and Decabromodiphenyl Oxide in Glass-fiber Reinforced Poly(1,4-butylene terephthalate) Composites†[J]. Chem. J. Chinese Universities, 2017, 38(2): 284.
Sample | Mass fraction(%) | |||
---|---|---|---|---|
PET-GF | DBDPO | CeHPP | Antioxidant | |
PET-GF | 100 | 0 | 0 | 0.3 |
PET-GF/DBDPO | 92 | 8 | 0.3 | |
PET-GF/CeHPP | 92 | 8 | 0.3 | |
PET-GF/DBDPO/CeHPP | 92 | 6 | 2 | 0.3 |
Table 1 Formulations of PET-GF/DBDPO/ CeHPP composites
Sample | Mass fraction(%) | |||
---|---|---|---|---|
PET-GF | DBDPO | CeHPP | Antioxidant | |
PET-GF | 100 | 0 | 0 | 0.3 |
PET-GF/DBDPO | 92 | 8 | 0.3 | |
PET-GF/CeHPP | 92 | 8 | 0.3 | |
PET-GF/DBDPO/CeHPP | 92 | 6 | 2 | 0.3 |
Fig.1 Heat release rate(A) and total heat release(B) of PET-GF/DBDPO/CeHPP composites in the Cone tests a. PET-GF; b. PET-GF/DBDPO; c. PET-GF/DBDPO/CeHPP; d. PET-GF/CeHPP.
Sample | PET-GF | PET-GF/DBDPO | PET-GF/DBDPO/CeHPP | PET-GF/CeHPP |
---|---|---|---|---|
tignited/s | 199 | 220 | 231 | 219 |
tPHRR/s | 245 | 253 | 261 | 255 |
PHRR/(kW·m-2) | 241.8 | 201.3 | 193.0 | 219.3 |
THR/(MJ·m-2) | 55.0 | 34.6 | 28.2 | 39.0 |
AMLR/(g·s-1) | 0.071 | 0.073 | 0.059 | 0.066 |
AEHC/(MJ·kg-1) | 21.6 | 5.1 | 16.2 | 19.3 |
ASPR/s-1 | 3.64 | 5.56 | 3.73 | 3.73 |
TSP(%) | 1235 | 1776 | 1135 | 1172 |
ASEA/(m2·kg-1) | 320 | 529 | 399 | 435 |
CO yield(%) | 0.051 | 0.133 | 0.139 | 0.078 |
CO2 yield(%) | 2.911 | 1.854 | 1.868 | 2.318 |
Table 2 Cone calorimetric data for PET-GF/DBDPO/CeHPP composites*
Sample | PET-GF | PET-GF/DBDPO | PET-GF/DBDPO/CeHPP | PET-GF/CeHPP |
---|---|---|---|---|
tignited/s | 199 | 220 | 231 | 219 |
tPHRR/s | 245 | 253 | 261 | 255 |
PHRR/(kW·m-2) | 241.8 | 201.3 | 193.0 | 219.3 |
THR/(MJ·m-2) | 55.0 | 34.6 | 28.2 | 39.0 |
AMLR/(g·s-1) | 0.071 | 0.073 | 0.059 | 0.066 |
AEHC/(MJ·kg-1) | 21.6 | 5.1 | 16.2 | 19.3 |
ASPR/s-1 | 3.64 | 5.56 | 3.73 | 3.73 |
TSP(%) | 1235 | 1776 | 1135 | 1172 |
ASEA/(m2·kg-1) | 320 | 529 | 399 | 435 |
CO yield(%) | 0.051 | 0.133 | 0.139 | 0.078 |
CO2 yield(%) | 2.911 | 1.854 | 1.868 | 2.318 |
Fig.2 Mass loss rate(MLR, A) and derive mass(B) of PET-GF/DBDPO/CeHPP composites in the Cone tests a. PET-GF; b. PET-GF/DBDPO; c. PET-GF/DBDPO/CeHPP; d. PET-GF/CeHPP.
Fig.3 Smoke production curves of PET-GF/DBDPO/CeHPP composites in Cone calorimeter (A) CO yield; (B) CO2 yield. a. PET-GF; b. PET-GF/DBDPO; c. PET-GF/DBDPO/CeHPP; d. PET-GF/CeHPP.
Fig.4 FTIR spectra of pyrolysis gaseous products emitted from PET-GF, PET-GF/DBDPO, PET-GF/CeHPP and PET-GF/DBDPO/CeHPP composites at the maximum evolution rate(439 ℃)(A) and total absorbance of gaseous(B) products vs time
Fig.5 Absorbance of pyrolysis products for PET-GF, PET-GF/DBDPO, PET-GF/CeHPP and PET-GF/DBDPO/CeHPP composites vs. time (A) CO; (B) CO2; (C) hydrocarbons; (D) carbonyl compounds.
Sample | C(%) | O(%) | P(%) | Ce(%) | C/O | P/Ce |
---|---|---|---|---|---|---|
Outer char PET-GF/DBDPO/CeHPP | 49.68 | 46.30 | 3.12 | 0.95 | 1.10 | 3.50 |
Inner char PET-GF/DBDPO/CeHPP | 53.22 | 43.03 | 2.80 | 0.95 | 1.20 | 2.90 |
Outer char PET-GF/CeHPP | 64.07 | 29.17 | 4.63 | 2.13 | 2.20 | 2.20 |
Inner char PET-GF/CeHPP | 60.17 | 35.06 | 3.14 | 1.63 | 1.70 | 1.90 |
Table 3 EDS data of residues for PET-GF/DBDPO/CeHPP and PET-GF/CeHPP composites
Sample | C(%) | O(%) | P(%) | Ce(%) | C/O | P/Ce |
---|---|---|---|---|---|---|
Outer char PET-GF/DBDPO/CeHPP | 49.68 | 46.30 | 3.12 | 0.95 | 1.10 | 3.50 |
Inner char PET-GF/DBDPO/CeHPP | 53.22 | 43.03 | 2.80 | 0.95 | 1.20 | 2.90 |
Outer char PET-GF/CeHPP | 64.07 | 29.17 | 4.63 | 2.13 | 2.20 | 2.20 |
Inner char PET-GF/CeHPP | 60.17 | 35.06 | 3.14 | 1.63 | 1.70 | 1.90 |
Sample | P(%) | Ce(%) | Br(%) | P/Ce |
---|---|---|---|---|
Outer char PET-GF/DBDPO/CeHPP | 83.35 | 15.89 | 0.76 | 5.20 |
Inner char PET-GF/DBDPO/CeHPP | 79.66 | 3.44 | 16.90 | 23.10 |
Table 4 XPS data of residues for PET-GF/DBDPO/CeHPP composite after Cone test
Sample | P(%) | Ce(%) | Br(%) | P/Ce |
---|---|---|---|---|
Outer char PET-GF/DBDPO/CeHPP | 83.35 | 15.89 | 0.76 | 5.20 |
Inner char PET-GF/DBDPO/CeHPP | 79.66 | 3.44 | 16.90 | 23.10 |

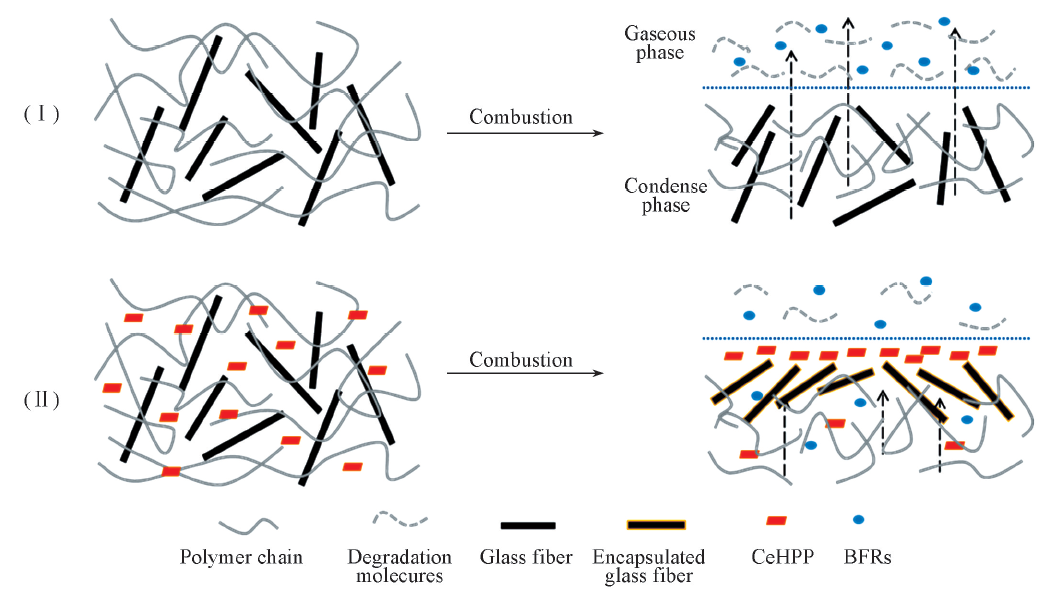

[1] | Chen Y. H., Wang Q., Polymer Degradation and Stability,2006, 91(9), 2003—2013 |
[2] | Casu A., Camino G., Giorgi M. D., Flath D., Laudi A., Morone V., Fire and Materials,1998, 22(1), 7—14 |
[3] | Kiliaris P., Papaspyrides C. D., Progress in Polymer Science,2010, 35(7), 902—958 |
[4] | Czégény Z., Jakab E., Blazsó M., Bhaskar T., Sakata Y., Journal of Analytical and Applied Pyrolysis,2012, 96(12), 69—77 |
[5] | Cynthia A. D. W., Chemoshpere, 2002, 46(5), 583—624 |
[6] | Adrian C., Stuart H., Mohamed A., Robin J. L., Dorte H., Cynthia A., Environment International,2011, 37(2), 532—556 |
[7] | Betts K., Environment Science and Technology, 2008, 42(18), 6778—6782 |
[8] | Ou Y.X., Flame Retardant, National Defense Industry Press, Beijing, 2009, 28—32 |
(欧育湘. 阻燃剂, 北京:国防工业出版社, 2009, 28—32) | |
[9] | Chen C., Guo Z. H., Ran S. Y., Fang Z. P., Polymer Composites,2014, 35(3), 539—547 |
[10] | Ran S. Y., Guo Z. H., Han L. G., Fang Z. P., Polymer International,2014, 63(10), 1835—1841 |
[11] | Ran S. Y., Guo Z. H., Han L. G., Fang Z. P., Industrial & Engineering Chemistry Research,2014, 53(12), 4711—4717 |
[12] | Guo Z. H., Ran S. Y., Fang Z. P., Composites Science and Technology,2013, 86, 157—163 |
[13] | Wang X., Song L., Yang H. Y., Xing W. Y., Lu H. D., Hu Y., Journal of Materials Chemistry,2012, 22(22), 3426—3431 |
[14] | Singha S., Sahoo M., Parida K. M., Dalton Transactions,2011, 40(44), 11838—11844 |
[15] | Lü G. M., Wang Y. J., Liu R., Sun L. D., Huang Y. H., Yan C. H., Science China(Chemistry), 2013, 43(10), 1309—1321 |
(吕广明, 王艳杰, 刘瑞, 孙聆东, 黄云辉, 严纯华. 中国科学, 化学, 2013, 43(10), 1309—1321) | |
[16] | Shen L., Chen Y. H., Li P. L., Composites: Part A,2012, 43(8), 1177—1186 |
[17] | Ren Q., Wan C. Y., Zhang Y., Polymers for Advanced Technologies,2011, 22(10), 1414—1421 |
[18] | Peters E. N., Journal of Applied Polymer Science, 1979, 24(6), 1457—1464 |
[19] | Ballistreri A., Montaudo G., Puglisi C., Scamporrino E., Vitalini D., Calgari S., Journal of Polymer Science: Polymer Chemistry Edition,1983, 21(3), 679—689 |
[20] | Granzow A., Ferrillo R. G., Wilson A., Journal of Applied Polymer Science,1977, 21(6), 1687—1697 |
[21] | Sergei V. L., Edward D. W., Polymer International,2005, 54(1), 11—35 |
[22] | Qu H. Q., Wu W. H., Zheng Y. J., Xie J. X., Xu J. Z., Fire Safety Journal,2011, 46(7), 462—467 |
[23] | Chen X. L., Jiao C. M., Fire Safety Journal,2009, 44(8), 1010—1014 |
[1] | GAO Jing, HE Wentao, WANG Xinxin, XIANG Yushu, LONG Lijuan, QIN Shuhao. Preparation of DOPO Derivative Modified Carbon Nanotubes and Their Effect on Flame Retardancy of Polylactic Acid [J]. Chem. J. Chinese Universities, 2022, 43(3): 20210670. |
[2] | YIN Ping,YAN Hongqiang,CHENG Jie,FANG Zhengping. Synthesis and Properties of a Novel Bio-based Benzoxazine† [J]. Chem. J. Chinese Universities, 2019, 40(5): 1071. |
[3] | WANG Na,YANG Fei,ZHANG Jing,FANG Qinghong. Inflame-retardant Water-borne Epoxy Resin of APP Microsphere with Carrageenan Cladding† [J]. Chem. J. Chinese Universities, 2019, 40(2): 385. |
[4] | SU Rui,WANG Yihan,CHEN Changbao,SUN Xiuli,LIU Shuying,YANG Hongmei. Determination of Brominated Flame Retardants in Environmental Water by Microwave-assisted Ionic Liquid/ionic Liquid Dispersive Liquid-liquid Microextraction Coupled with DART-Orbitrap Mass Spectrometry† [J]. Chem. J. Chinese Universities, 2018, 39(9): 1934. |
[5] | LU Lingang,CHENG Zhe,QIU Xinming,WANG Huiya,YANG Shousheng,QIAN Xiaodong,WANG Xuebao. Preparation of Green Star-topology Phosphazene Flame Retardant and Properties of Flame-retardant Epoxy Resin† [J]. Chem. J. Chinese Universities, 2018, 39(12): 2789. |
[6] | LIU Ziyi, XU Miaojun, WANG Qi, LI Bin. Preparation and Properties of Flame Retardant Cotton Fabric by Surface Chemical Grafted Modification [J]. Chem. J. Chinese Universities, 2017, 38(8): 1477. |
[7] | ZHANG Weiwei, XUE Zhixin, LIU Jingjing, YAN Miao, XIA Yanzhi. Flame-retardant Property of Carrageenan Fiber† [J]. Chem. J. Chinese Universities, 2017, 38(2): 303. |
[8] | ZHAO Shishi, HE Meng, SONG Wenyao, ZHANG Chong, XU Jianzhong, MA Haiyun. Synthesis of a Phosphorus/Nitrogen/Sulphur Containing Phosphazene Micro-Nanotube and Its Flame Retardancy on Epoxy Nanocomposite† [J]. Chem. J. Chinese Universities, 2017, 38(12): 2337. |
[9] | TANG Qiheng, AI Qingsong, YANG Rongjie, HE Jiyu. Synthesis and Flame Retardancy of Novel Thermally Stable Poly(imideurethane)s Containing Imide and Alkynyl Groups in Main Chain [J]. Chem. J. Chinese Universities, 2014, 35(1): 199. |
[10] | FAN Haibo, YANG Rongjie. Polyimide Membranes Modified by Polyhedral Oligomeric Silsesquioxane [J]. Chem. J. Chinese Universities, 2014, 35(1): 180. |
[11] | XU Dong-Mei, DING Fei, HAO Jian-Wei, DU Jian-Xin. Preparation of Modified Expandable Graphite and Its Flame Retardant Application in Rigid Polyurethane Foam [J]. Chem. J. Chinese Universities, 2013, 34(11): 2674. |
[12] | CHEN Xiao-Ting, TANG Xu-Dong, WANG Yu-Zhong . Synthesis and Thermal Behavior of Phosphorus-containing Thermotropic Wholly Aromatic Copolyesters [J]. Chem. J. Chinese Universities, 2002, 23(3): 508. |
[13] | SHI Lai-Shun, WANG Jian-Qi . The Investigation of Flame Retardancy for Polyethylene Treated by Plasma Grafting of Methylacrylic Acid [J]. Chem. J. Chinese Universities, 2001, 22(3): 489. |
[14] | TANG Xu-Dong, CHEN Xiao-Ting, WANG Yu-Zhong, YANG Ke-Ke, WU Da-Cheng . Synthesis and Characterization of Polyazodiphenylene Phenylphosphonates [J]. Chem. J. Chinese Universities, 1998, 19(11): 1869. |
[15] | WANG Yu-Zhong, ZHENG Chang-Yi, WU Da-Cheng. Properties of Polyethylene Terephthalate/Polysulfonyldiphenylene Phenylphosphanate Flame-Retardant Systems [J]. Chem. J. Chinese Universities, 1997, 18(3): 472. |
Viewed | ||||||
Full text |
|
|||||
Abstract |
|
|||||
