Preparation and Evaluation of Modified Cyanobacteria-derived Activated Carbon for CO2 Adsorption†

doi:10.7503/cjcu20170480

Abstract

Abstract:

A series of porous carbon sorbents obtained through carbonization and KOH activation of the abundant waste materials cyanobacteria or further modified by HNO₃, HP $O 4$ or NH₃·H₂O was utilized for CO₂ adsorption. During the optimal activation parameters experiments, the activation time, activation temperature and the KOH/C mass ratio were 2 h, 800 ℃ and 2, respectively. Sample ACK-2-8 was capable of uptake CO₂ capacities near 3.85 mmol/g at 25 ℃ and 1.01×10⁵ Pa. At the same time, the secondary modification samples of ACK-2-8-1, ACK-2-8-2 and ACK-2-8-3 exhibited CO₂ uptake capacities up to 4.41, 3.97 and 4.63 mmol/g in turn. It was notable that the N-doping enhanced CO₂ uptake from samples ACK-2-8-1 or ACK-2-8-3. It could be reused for five batches of continuous operation without a significant loss of CO₂ uptake capacity and thus has a great potential of real-world applications.

Key words: Cyanobacteria-derived activated carbon, KOH activation, CO2 uptake, N-Doping

CLC Number:

O647
X51

TrendMD:

GAO Jun, HU Hui, LIU Xueyan. Preparation and Evaluation of Modified Cyanobacteria-derived Activated Carbon for CO₂ Adsorption^†[J]. Chem. J. Chinese Universities, 2018, 39(2): 284.

Figures/Tables 12

Fig.1 TG(a) and DTG(b) curves of cyanobacteria

Table 1 Proximate and ultimate analysis of cyanobacteria

Proximate analysis^a		Ultimate analysis
Component	Mass fraction(%)	Element	Mass fraction(%)
Moisture	15.03	C	43.28
Volatile	68.04	H	6.36
Ash	5.97	O^b	35.81
Fixed carbon	10.96	N	7.70
		S	0.88

Fig.2 Effects of activation time on N2 adsorption-desorption experiment of ACK-2-7(a), ACK-2-8(b) and ACK-3-8(c)

Table 2 Structural parameters for AC and ACK-X-Y samples

Sample	S_BET/(m²·g^-1)	V_total/(cm³·g^-1)	V_micro(cm³·g^-1)	$D ?$ /nm
AC	10.7	0.011		4.02
ACK-1-6	705	0.429	0.344	4.62
ACK-1-7	932	0.514	0.425	2.87
ACK-1-8	1247	0.646	0.491	2.65
ACK-2-6	1006	0.578	0.505	2.30
ACK-2-7	1694	0.887	0.700	2.10
ACK-2-8	1951	1.092	0.756	2.27
ACK-3-6	970	0.545	0.454	2.23
ACK-3-7	1111	0.592	0.487	2.13
ACK-3-8	1854	0.992	0.724	2.26

Table 2 Structural parameters for AC and ACK-X-Y samples

Sample	S_BET/(m²·g^-1)	V_total/(cm³·g^-1)	V_micro(cm³·g^-1)	$D ?$ /nm
AC	10.7	0.011		4.02
ACK-1-6	705	0.429	0.344	4.62
ACK-1-7	932	0.514	0.425	2.87
ACK-1-8	1247	0.646	0.491	2.65
ACK-2-6	1006	0.578	0.505	2.30
ACK-2-7	1694	0.887	0.700	2.10
ACK-2-8	1951	1.092	0.756	2.27
ACK-3-6	970	0.545	0.454	2.23
ACK-3-7	1111	0.592	0.487	2.13
ACK-3-8	1854	0.992	0.724	2.26

Fig.3 N2 adsorption-desorption isotherms(A) and pore diameter distributions(B) of ACK-2-Y and ACK-3-8 samples

Fig.4 N2 adsorption-desorption isotherms(A) and pore diameter distributions(B) of ACK-2-8 and ACK-2-8-X

Table 3 Structural parameters and CO2 adsorption capacity(25 ℃) for ACK-2-8 and ACK-2-8-X samples

Sample	S_BET/(m²·g^-1)	V_total/(cm³·g^-1)	V_micro/(cm³·g^-1)	$D ?$ /nm	CO₂ uptake at 1.01×10⁵ Pa/(mmol·g^-1)
ACK-2-8	1951	1.092	0.756	2.27	3.85
ACK-2-8-1	1846	1.023	0.735	2.22	4.41
ACK-2-8-2	1901	1.026	0.726	2.26	3.97
ACK-2-8-3	2125	1.238	0.834	2.33	4.63

Table 3 Structural parameters and CO2 adsorption capacity(25 ℃) for ACK-2-8 and ACK-2-8-X samples

Sample	S_BET/(m²·g^-1)	V_total/(cm³·g^-1)	V_micro/(cm³·g^-1)	$D ?$ /nm	CO₂ uptake at 1.01×10⁵ Pa/(mmol·g^-1)
ACK-2-8	1951	1.092	0.756	2.27	3.85
ACK-2-8-1	1846	1.023	0.735	2.22	4.41
ACK-2-8-2	1901	1.026	0.726	2.26	3.97
ACK-2-8-3	2125	1.238	0.834	2.33	4.63

Fig.5 SEM images of samples AC(A), ACK-2-8(B), ACK-2-8-1(C), ACK-2-8-2(D) and ACK-2-8-3(E)

Fig.6 XPS spectra of carbon materials with further modified on sample ACK-2-8 (A) ACK-2-8-1, N1s; (B) ACK-2-8-2, P2p; (C) ACK-2-8-3, N1s.

Fig.7 CO2 uptake isotherms measured at 25 ℃ for AC, AC-2-8 and AC-2-8-X samples

Table 4 Comparison of CO2 adsorption and SBET on various materials

Sample	S_BET/(m²·g^-1)	CO₂ uptake at 1.01×10⁵ Pa/(mmol·g^-1)	Ref.
ACK-2-8	1951	3.85	This work
ACK-2-8-1	1846	4.41	This work
ACK-2-8-2	1901	3.97	This work
ACK-2-8-3	2125	4.63	This work
N-doped porous carbons NC-1-600	807	4.07	[2]
NC-2-600	986	4.61	[2]
N-doped porous carbons(coconut shell) NC-650-3	1535	4.8	[3]
NC-700-3	1596	4.7	[3]
NC-700-4	1937	4.4	[3]
Porous carbon(petroleum coke) K4-700	1745	3.45	[12]
Porous carbon(rice husk char) PC1-710	1041	4.16	[13]
PC3-780	2695	3.71	[13]
Activated carbon(bamboo) bamboo-3-873	1846	4.5	[16]
N-doped active carbon(chitosan) AC800	728	4.17	[21]
Activated carbons(pine cone shell) PAC-650/2	3135	4.73	[28]
Activated carbon(petroleum coke) UC-650-2	1394	4.4	[29]
Porous carbon(popcorn) PC-0.5K	867	4.6	[30]
Porous carbon(waste polyurethane foam) PUF-400-KOH-1-700	1516	4.33	[31]

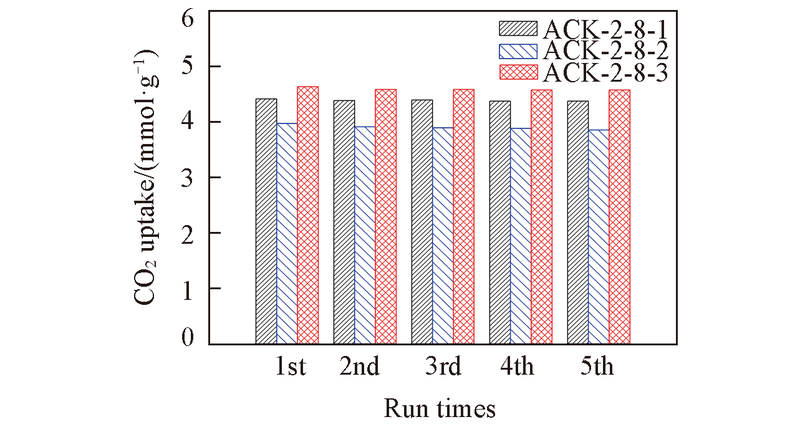

Fig.8 Relationship between the amount of CO2 adsorbed and running times for sample ACK-2-8-X

References 31

[1]	Haszeldine R. S., Science, 2009, 325(5948), 1647—1652
[2]	Ren X. M., Li H., Chen J., Wei L. J., Modak A., Yang H. Q., Yang Q. H., Carbon,2017, 114, 473—481
[3]	Chen J., Yang J., Hu G. S., Hu X., Li Z. M., Shen S. W., Radosz M., Fan M. H., ACS Sustain. Chem. Eng., 2016, 4(3), 1439—1445
[4]	Wang Q. A., Luo J. Z., Zhong Z. Y., Borgna A., Energ. & Environ. Sci., 2011, 4(1), 42—55
[5]	Wang S. P., Yan S. L., Ma X. B., Gong J. L., Energ. & Environ. Sci., 2011, 4(10), 3805—3819
[6]	Wickramaratne N. P., Jaroniec M., ACS Appl. Mater. Interfaces, 2013, 5(5), 1849—1855
[7]	Hudson M. R., Queen W. L., Mason J. A., Fickel D. W., Lobo R. F., Brown C. M., J. Am. Chem. Soc., 2012, 134(4), 1970—1973
[8]	Xu X., Song C., Andresen J. M., And B. G. M., Scaroni A. W., Energ. & Fuels, 2017, 16(6), 1463—1469
[9]	Xu C., Hedin N., Mater. Today, 2014, 17(8), 397—403
[10]	McDonald T. M., Lee W. R., Mason J. A., Wiers B. M., Hong C. S., Long J. R., J. Am. Chem. Soc., 2012, 134(16), 7056—7065
[11]	Lee S. Y., Park S. J., J. Ind. & Eng. Chem., 2015, 23, 1—11
[12]	Hu X., Radosz M., Cychosz K. A., Thommes M., Environ. Sci. Technol., 2011, 45(16), 7068—7074
[13]	Li D. W., Ma T. F., Zhang R. L., Tian Y. Y., Qiao Y. Y., Fuel,2015, 139(139), 68—70
[14]	Zhang G. Q., Zheng H. Y., Hao Z. Q., Li Z., Chem. J. Chinese Universities, 2016, 37(7), 1380—1389
	(张国强, 郑华艳, 郝志强, 李忠. 高等学校化学学报, 2016,37(7), 1380—1389)
[15]	Kongnoo A., Intharapat P., Worathanakul P., Phalakornkule C., J. Environ. Chem. Eng., 2016, 4(1), 73—81
[16]	Wei H. R., Deng S. B., Hu B. Y., Chen Z. H., Wang B., Huang J., Yu G., ChemSusChem,2012, 5(12), 2354—2360
[17]	Wang K. L., Cao Y. H., Wang X. M., Fan Q. H., Gibbons W., Johnson T., Luo B., Gu Z. R., Energy,2016, 94, 666—671
[18]	Barrington D. J., Ghadouani A., Environ. Sci. Technol., 2008, 42(23), 8916—8921
[19]	Gao J., Xie J., Liu X. Y., Hu H., RSC Adv., 2017, 7(33), 20412—20421
[20]	Deng L., Zhang T., Che D. F., Fuel Process. Technol., 2013, 106(106), 712—720
[21]	Li D. W., Zhou J. J., Zhang Z. B., Li L. J., Tian Y. Y., Lu Y. M., Qiao Y. Y., Li J. H., Wen L., Carbon,2017, 114, 496—503
[22]	Qiu Y. J., Yu J., Shi T. N., Zhou X. S., Bai X. D., Huang J. Y., J. Power Sources, 2011, 196(23), 9862—9867
[23]	Yin J., Qiu Y. J., Yu J., Electrochem. Commun., 2013, 30(30), 1—4
[24]	Kapteijn F., Moulijn J. A., Matzner S., Boehm H. P., Carbon,1999, 37(7), 1143—1150
[25]	Wang Z. Q., Sun L. X., Xu F., Zhou H. Y., Peng X. J., Sun D. L., Wang J. C., Du Y., Int. J. Hydrogen Energy, 2016, 41(20), 8489—8497
[26]	Choi C. H., Park S. H., Woo S. I., ACS Nano, 2012, 6(8), 7084—7091
[27]	Sánchez-Sánchez A., Suárez-García F., Martínez-Alonso A., Tascon J. M. D., ACS Applied Materials & Interfaces,2014, 6(23), 21237—21247
[28]	Li K. M., Tian S. C., Jiang J. G., Wang J. M., Chen X. J., Yan F., J. Mater. Chem. A, 2016, 4(14), 5223—5234
[29]	Bai R. Z., Yang M. L., Hu G. S., Xu L. Q., Hu X., Li Z. M., Wang S. L., Dai W., Fan M. H., Carbon,2015, 81(1), 465—473
[30]	Liang T., Chen C. L., Li X., Zhang J., Langmuir,2016, 32(32), 8042—8049
[31]	Ge C., Song J., Qin Z. F., Wang J. G., Fan W. B., ACS Appl. Mater. Interfaces, 2016, 8(29), 18849—18859
