Preparation and Recognization Property of Chiral Thermo-sensitive P(NIPAM-co-NALL) Hydrogels†

doi:10.7503/cjcu20130743

Abstract

Abstract:

A series of novel thermo-sensitive hydrogels based on N-isopropylacrylamide(NIPAM) containing L-leucine groups was designed and synthesized for chiral recognition. L-Leucine used as chiral pool, the chiral monomer N-acryloyl-L-leucine methyl ester(NALL) was obtained by sterifization with methanol to protect carboxyl group and then condensation with acryloyl chloride in the presence of trirthylamine in N,N-dimethylfo-mamid(DMF)and gave the chiral monomers N-acryloyl-L-leucine methyl ester(NALL), whose structure was characterized by infrared(IR) and proton nuclear magnetic resonance(¹H NMR). Then the subsequent copolymerization was carried on between NALL as chiral recognition units, NIPAM and N,N'-methylenebisacry-lamide(MBAA) as linkage agent in the presence of azobisisobutyronitrile(AIBN) in ethanol with different mass ratios. The P(NIPAM-co-NALL) hydrogels were identified by IR. The swelling behavior, deswelling and reswelling kinetics of the chiral hydrogels were studied, and the results showed that all the P(NIPAM-co-NALL) hydrogels exhibited evident temperature-sensitivity. Due to the hydrophobicity of NALL incorporated into the structure of the chiral gels, the thermo-sensitivity of the chiral gels was lower than that of PNIPAM gel. The chiral selective adsorption and chiral recognition performance were also investigated by D, L-phenylalanine(D, L-Phe) as model drugs. The results indicated that compared with PNIPAM gel, the chiral gels performed higher adsorption rate and larger adsorption quantities for D-Phe enantiomers. Increasing the contents of chiral monomer or the controlling temperature would improve the chiral recognizable capacity and efficiency of resolution. Furthermore, P(NIPAM-co-NALL) hydrogels could be reused, which remained the chiral recognition property after three-times reuse although the absorption capacity decreased to 27.6% of the original.

Key words: Thermo-sensitive hydrogel, N-Isopropylacrylamide, L-Leucine, Chiral recognization

CLC Number:

O632
O647

TrendMD:

CHEN Jiaojiao, HOU Lintong, JIANG Yi, ZHANG Xia. Preparation and Recognization Property of Chiral Thermo-sensitive P(NIPAM-co-NALL) Hydrogels^†[J]. Chem. J. Chinese Universities, 2014, 35(3): 645.

Figures/Tables 12

Scheme 1 Synthetic routes of P(NIPAM-co-NALL) hydrogels

Table 1 Feed composition of P(NIPAM-co-NALL) hydrogels

r	m(NIPAM)/mg	m(NALL)/mg	m(MBAA)/mg	m(AIBN)/mg
0	339.5	0	23.1	5
0.05	326.7	16.3	23.1	5
0.1	314.9	31.5	23.1	5

Fig.1 FTIR spectra of PNIPAM and P(NIPAM-co-NALL) hydrogels with various NALL contents r: a. 0; b. 0.05; c. 0.1.

Fig.2 Relationship between SR and temperature(A) and DSC curves(B) of PNIPAM and P(NIPAM-co-NALL) hydrogels r: a. 0; b. 0.05; c. 0.1.

Fig.3 Deswelling kinetics of PNIPAM and P(NIPAM- co-NALL) hydrogels at 45 ℃ r: a. 0; b. 0.05; c. 0.1.

Fig.4 Reswelling kinetics of PNIPAM and P(NIPAM- co-NALL) hydrogels at 25 ℃ r: a. 0; b. 0.05; c. 0.1.

Fig.5 Equilibrium absorption capacity of PNIPAM and P(NIPAM-co-NALL) hydrogels(r=0.1) at 40 ℃

Fig.6 Absorption kinetics of P(NIPAM-co-NALL) hydrogels(r=0.1) at 25 ℃(a) and 40 ℃(b)

Fig.7 Variation of absorption kinetics of PNIPAM and P(NIPAM-co-NALL) hydrogels with various NALL contents at 40 ℃ r: a. 0; b. 0.05; c. 0.1.

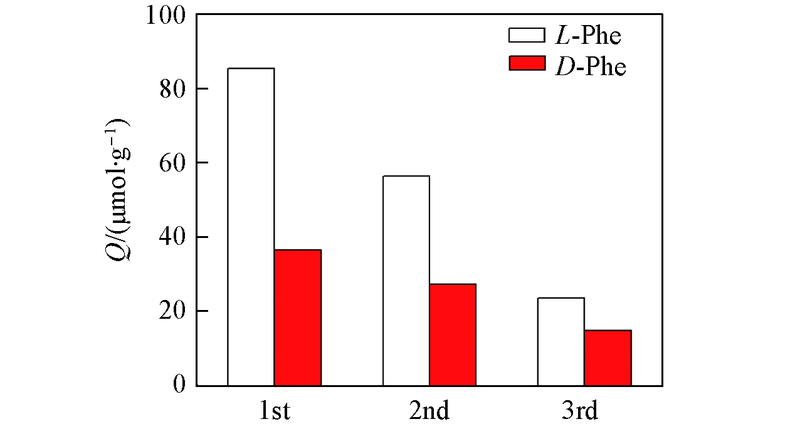

Fig.8 Equilibrium absorption capacity of P(NIPAM-co-NALL) hydrogels(r=0.1) at 40 ℃ in multiple absorption-release test

Fig.9 Optical rotation([α]) with adsorbing time of PNIPAM and P(NIPAM-co-NALL) hydrogelsInitial total concentration of rac-phenlyalanine solution, 50 mmol/L. r: a. 0; b. 0.05; c. 0.1.

Fig.10 Optical rotation([α]) with adsorbing time of P(NIPAM-co-NALL) hydrogels(r=0.1) at 25 ℃(a) and 40 ℃(b)

References 26

[1]	Lu H., Expert Opin. Drug Met., 2007, 3(2), 149—158
[2]	You Q.D., Lin G. Q., Chiral Drugs——Research and Application, Chemical Industry Press, Beijing, 2003, 26—48
	(尤启冬, 林国强. 手性药物——研究与应用, 北京: 化学工业出版社, 2003, 26—48)
[3]	Wang D., Zhang X., Zhang J., Wang M., Chromatographia,2007, 65(5/6), 343—348
[4]	Francotte E. R., J. Chrommatogr., A,2001, 906(1/2), 379—397
[5]	Miller L., J. Chrommatogr., A,2012, 1250(SI), 250—255
[6]	Li L., Zi M., Ren Z. X., Yuan L. M., Prog. Chem., 2007, 19(2/3), 393—403
	(李莉, 字敏, 任朝兴, 袁黎明. 化学进展, 2007, 19(2/3), 393—403)
[7]	Jang H. K., Jee H. K., Jonggeon J., Kew-Ho L., J. Membrane Sci., 2003, 213(1/2), 273—283
[8]	Gumi T., Minguillon C., Palet C., Polymer,2005, 46(26), 12306—12312
[9]	Bernal J. L., Toribio L., Nozal M. J., J. Biochem. Bioph. Meth., 2002, 54(1—3), 245—254
[10]	Maier N. M., Lindner W., Anal. Bioanal. Chem., 2007, 389(2), 377—397
[11]	Sun Y., Wang B., Chem. J. Chinese Universities,2012, 33(4), 838—842
	(孙妍, 王兵. 高等学校化学学报, 2012, 33(4), 838—842)
[12]	Maier N. M., Franco P., Lindner W., J. Chrommatogr., A,2001, 906(1), 3—33
[13]	Wang X. D., Yao J. S., Wei M. X., Wu G., Luo C., Chinese J. Org. Chem., 2006, 26(7), 912—921
	(王晓东, 姚金水, 魏明星, 武光, 罗存. 有机化学, 2006, 26(7), 912—921)
[14]	Kaori K., Toshiaki S., Akira D., J. Chromatogr., A,2003, 1012(1), 47—56
[15]	Hirokawa Y., Tanaka T., J. Chem. Phys., 1984, 81(12), 6379—6380
[16]	Chee C. K., Rimmer S., Soutar I., Swanson L., Polymer,1997, 38(3) 483—486
[17]	Dai Y. L., Ma P. A., Cheng Z. Y., Kang X. J., Zhang X., Hou Z. Y., Li C. X., Yang D. M., Zhai X. F., Lin J., ACS Nano,2012, 6(4), 3327—3338
[18]	Kang X. J., Cheng Z. Y., Yang D. M., Ma P. A., Shang M. M., Peng C., Dai Y. L., Lin J., Adv. Funct. Mater., 2012, 22(7), 1470—1481
[19]	Sakamoto C., Okada Y., Kanazawa H., Ayano E., Nishimura T., Ando M., Kikuchi A., Okano T., J. Chromatogr., A,2004, 1030(1/2), 247—253
[20]	Ayano E., Kanazawa H., J. Sep. Sci., 2006, 29(6), 738—749
[21]	Xie R., Chu L. Y., Chen W. M., Xiao W., Wang H. D., Qu J. B., J. Membrane Sci., 2005, 258(1/2), 157—166
[22]	Daisuke N., Yuriko N., Masayoshi W., Langmuir,2003, 19(20), 8542—8549
[23]	Du X. Y., Liu J. B., Deng J. P., Yang W. T., Polym. Chem., 2010, 1(7): 1030—1038
[24]	Li L., Du X. Y., Deng J. P., Yang W. T., React. Funct. Polym., 2011, 71(9): 972—979
[25]	Wang Q.D., The Synthesis and Biological Assay of Ethyl L-α-Amino Acid Ester, Shanghai Normal University, Shanghai, 2007
	(王庆东. L-α-氨基酸乙酯的合成和生物评价, 上海: 上海师范大学, 2007)
[26]	Annaka M., Tanaka C., Nakahira T., Sugiyama M., Aoyagi T., Okano T., Macromolecules,2002, 35(21), 8173—8179
